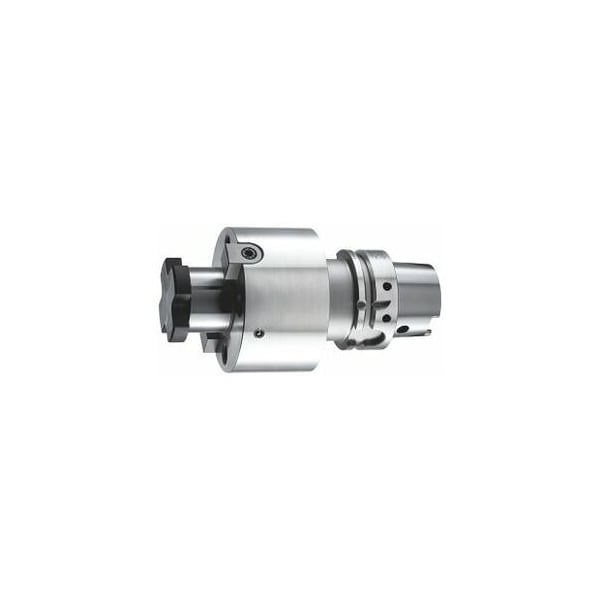

Face Mill Arbor with Cooling Channel Bore, HSK-A 63, Projection: 100, Clamping Diameter: 40mm
Mfr # 306562 40
Zoro # G414774938
product price: $477.99
/ea
Free Shipping & Returns
Key Features
Cooling Channel Bore
Not Pluggable
Balance Quality
G 2.5 at 25,000 rpm
Clamping Dia.
40 mm
Projection
100 mm
Shank Shape
A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
306562 40
Zoro #
G414774938
UPC #
-
Country of Origin
Germany
Dimensions
Clamping Dia.
40 mm
Taper Size
HSK63A
Spigot Dia.
40 mm
Milling Mandrel Length
27 mm
Outside Dia.
89 mm
Details
Cooling Channel Bore
Not Pluggable
Balance Quality
G 2.5 at 25,000 rpm
Projection
100 mm
Shank Shape
A
Spare Milling Cutter Lock Screw No. 309860 / 309861
40
Machining Strategy
HPC
Concentricity
≤ 6 µm
Item
Milling head arbor
Suitable Toggle Spanner No. 309840
40
Description
Clamping Dia 40 with 4 tapped holes for drive blocks to DIN 2079. With Balluff/RFID chip bore. Increased collar contact surface. HSK mating faces machined. With Cooling Channel Bores. Application: For clamping shell end Mills and Milling cutter heads. Supplied with: Lock screw Optional extras: Coolant tube No. 309880, socket wrench for coolant tubes No. 309890, toggle wrench No. 309840. Overhang dimension A: 100 mm External Dia D: 89 mm Milling mandrel length L4: 27 mm Spare Milling cutter lock screw No. 309860 / 309861: 40 Suitable toggle wrench No. 309840: 40
