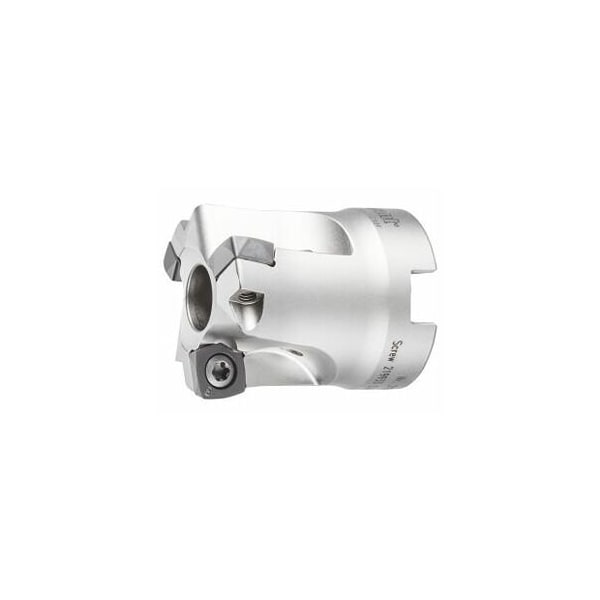

FeedKing High Feed Rate Milling Cutter, with Bore, 35mm Diameter, 3 Inserts
Mfr # 212910 35/3
Zoro # G316120277
product price: $373.99
/ea
Free Shipping & Returns
Key Features
Overall Length
40 mm
Insert Screw
219933 (15IP; 3.8 Nm)
Series
FeedKing
Cutting Angle
9°
Number of Teeth
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
212910 35/3
Zoro #
G316120277
UPC #
-
Country of Origin
Italy
Dimensions
Overall Length
40 mm
Cutting Dia.
35 mm
Ramping Length for αmax
18.5 mm
Free length
40 mm
Mounting Bore Dia.
16 mm
Diameter 3
19 mm
Max. Cutting Depth
1.15 mm
Details
Insert Screw
219933 (15IP; 3.8 Nm)
Series
FeedKing
Cutting Angle
9°
Item
Copy mill
Number of Teeth
3
Dia/No. of Cutting Edges
35 mm/3
Fz Helix
0.7
Coolant Through
Yes
Tool Exchange
PowerCard
Axial Rake Angle
5°
Ramping Angle
0.93°
Circular Interpolation Milling - Dmax
68 mm
Shank Type
with bore
Circular interpolation milling ap
1.15 mm
Circular Interpolation Milling - Dmin
54 mm
Description
Version: Dynamic cutting edge geometry for highest feed rates. Extremely smooth cutting due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces- thereby reducing the stress on the main spindle. Advantage: Particularly cost-effective due to exceptionally sturdy 4-edge inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 3D3: 19 mm maximum cutting depth ap max: 1.15 mm Overall length Ltot: 40 mm Mounting bore : 16 mm Circular interpolation millingDmin: 54 mm
