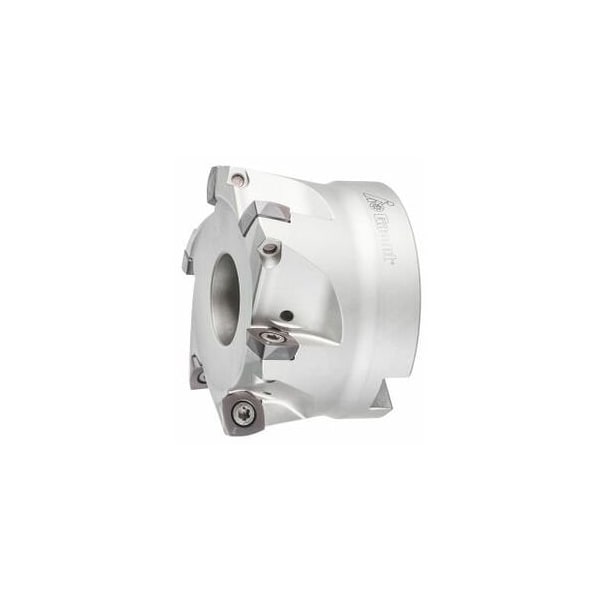

FeedKing High Feed Rate Milling Cutter, with Bore, 80mm Diameter, 6 Inserts
- Mfr # 212910 80/6
- Zoro # G616120250
product price:Â
$
558.99
/ea
Free Shipping & Returns
Key Features
Series
FeedKing
Cutting Angle
12°
Cutting Dia.
80 mm
Number of Teeth
6
Insert Screw
219800 (20IP; 5.7 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212910 80/6
- Zoro #
- G616120250
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 80 mm
- Overall Length
- 50 mm
- Free length
- 50 mm
- Max. Cutting Depth
- 1.8 mm
- Mounting Bore Dia.
- 32 mm
- Diameter 3
- 59 mm
- Ramping Length for αmax
- 58.5 mm
Details
- Item
- Copy mill
- Series
- FeedKing
- Cutting Angle
- 12°
- Number of Teeth
- 6
- Insert Screw
- 219800 (20IP; 5.7 Nm)
- Circular Interpolation Milling - Dmin
- 139 mm
- Circular Interpolation Milling - Dmax
- 158 mm
- Tool Exchange
- PowerCard
- Shank Type
- with bore
- Axial Rake Angle
- 5°
- Dia/No. of Cutting Edges
- 80 mm/6
- Ramping Angle
- 0.29°
- Coolant Through
- Yes
- Circular interpolation milling ap
- 1.85 mm
- Fz Helix
- 0.7
Description
Version: Dynamic cutting edge geometry for highest feed rates. Extremely smooth cutting due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces- thereby reducing the stress on the main spindle. Advantage: Particularly cost-effective due to exceptionally sturdy 4-edge inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 6D3: 59 mm maximum cutting depth ap max: 1.8 mm Overall length Ltot: 50 mm Mounting bore : 32 mm Circular interpolation millingDmin: 139 mm
