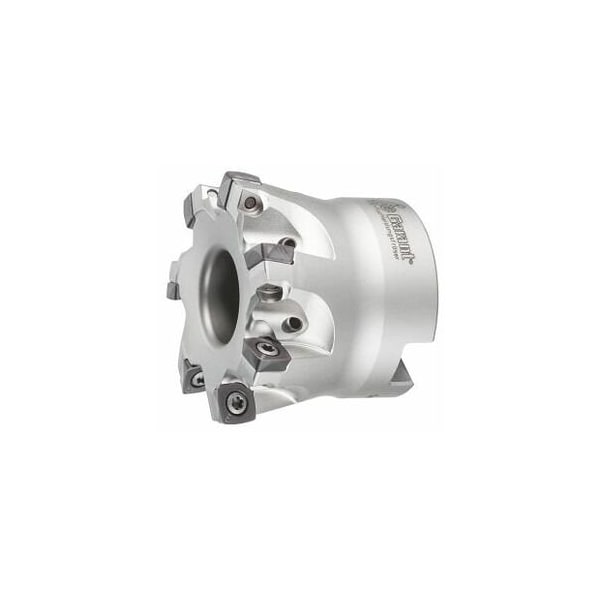

FeedKing High Feed Rate Milling Cutter, with Bore, 50mm Diameter, 7 Inserts
Mfr # 212910 50/7
Zoro # G116120248
product price: $601.99
/ea
Free Shipping & Returns
Key Features
Series
FeedKing
Cutting Dia.
50 mm
Overall Length
40 mm
Cutting Angle
10°
Number of Teeth
7
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
212910 50/7
Zoro #
G116120248
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
50 mm
Overall Length
40 mm
Ramping Length for αmax
36 mm
Max. Cutting Depth
0.85 mm
Diameter 3
37 mm
Mounting Bore Dia.
22 mm
Free length
40 mm
Details
Item
Copy mill
Series
FeedKing
Cutting Angle
10°
Number of Teeth
7
Insert Screw
219810 (9IP; 2.2 Nm)
Fz Helix
0.7
Axial Rake Angle
5°
Dia/No. of Cutting Edges
50 mm/7
Coolant Through
Yes
Circular interpolation milling ap
0.85 mm
Shank Type
with bore
Ramping Angle
0.48°
Tool Exchange
PowerCard
Circular Interpolation Milling - Dmax
98 mm
Circular Interpolation Milling - Dmin
87 mm
Description
Version: Dynamic cutting edge geometry for highest feed rates. Extremely smooth cutting due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces- thereby reducing the stress on the main spindle. Advantage: Particularly cost-effective due to exceptionally sturdy 4-edge inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 9IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 7D3: 37 mm maximum cutting depth ap max: 0.85 mm Overall length Ltot: 40 mm Mounting bore : 22 mm Circular interpolation millingDmin: 87 mm
