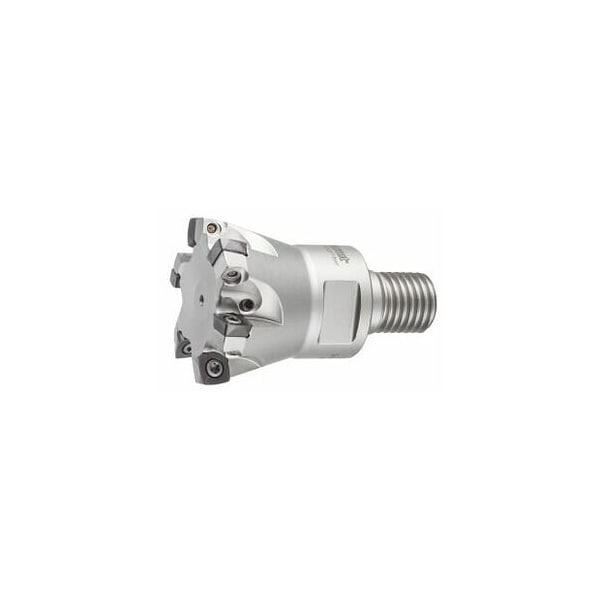

FeedKing High Feed Rate Milling Cutter, with Threaded Shank, 42mm Diameter, 6 Inserts
Mfr # 212905 42/6
Zoro # G616120243
product price:Â
$
454.99
/ea
Free Shipping & Returns
Key Features
Series
FeedKing
Cutting Angle
10°
Overall Length
42 mm
Insert Screw
219810 (9IP; 2.2 Nm)
Cutting Dia.
42 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212905 42/6
- Zoro #
- G616120243
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 42 mm
- Cutting Dia.
- 42 mm
- Max. Cutting Depth
- 0.85 mm
- Diameter 2
- 28.7 mm
- Diameter 1
- 17 mm
- Free length
- 42 mm
- Ramping Length for αmax
- 28 mm
- Diameter 3
- 29 mm
Details
- Item
- Copy mill
- Series
- FeedKing
- Cutting Angle
- 10°
- Insert Screw
- 219810 (9IP; 2.2 Nm)
- Number of Teeth
- 6
- Fz Helix
- 0.7
- Ramping Angle
- 0.61°
- Mounting Thread
- M16
- Axial Rake Angle
- 5°
- Circular Interpolation Milling - Dmax
- 82 mm
- Coolant Through
- Yes
- Shank Type
- with threaded shank
- Circular Interpolation Milling - Dmin
- 71 mm
- Dia/No. of Cutting Edges
- 42 mm/6
- Tool Exchange
- PowerCard
- Circular interpolation milling ap
- 0.85 mm
Description
Version: Dynamic cutting edge geometry for highest feed rates. Extremely smooth cutting due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces- thereby reducing the stress on the main spindle. Advantage: Particularly cost-effective due to exceptionally sturdy 4-edge inserts. Note: When working with extensions- always use internal cooling. Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 9IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 6D1 h6: 17 mmD2: 28.7 mmD3: 29 mm maximum cutting depth ap max: 0.85 mm Overall length Ltot: 42 mm
