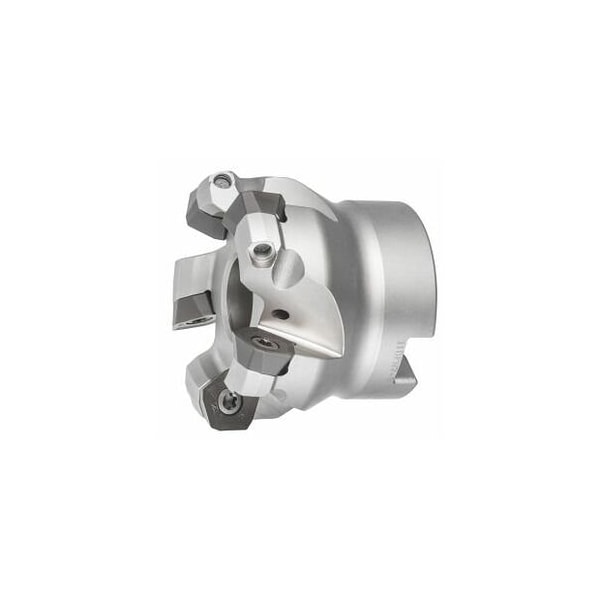

Hi5 High Feed Rate Milling Cutter, with Bore, 63mm Diameter, 5 Inserts
Mfr # 213110 63/5
Zoro # G816120371
product price: $491.99
/ea
Free Shipping & Returns
Key Features
Series
Hi5
Cutting Dia.
63 mm
Cutting Angle
90°
Overall Length
50 mm
Number of Teeth
5
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
213110 63/5
Zoro #
G816120371
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
63 mm
Overall Length
50 mm
Mounting Bore Dia.
27 mm
Max. Cutting Depth
2.2 mm
Diameter 3
43.6 mm
Details
Item
Face mill
Series
Hi5
Cutting Angle
90°
Number of Teeth
5
Insert Screw
219889 (20IP; 5.7 Nm)
Tool Exchange
PowerCard
Dia/No. of Cutting Edges
63 mm/5
Overhang
50 mm
Shank Type
with bore
Coolant Through
Yes
Description
Description: Powerful and smooth-cutting high feed rate indexable face mill. Particularly smooth-running- due to unequal spacing of the teeth. Can also be used for semi-finishing. Cost-efficiency due to 5-edge inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. Tool exchange: PowerCard Number of cutting edges Z: 5D3: 43.6 mm maximum cutting depth ap max: 2.2 mm Overall length Ltot: 50 mm Mounting bore : 27 mm suitable indexable insert: POMX 10T5.. Pack of insert screws: 219889 20IP- 5.7 Nm
