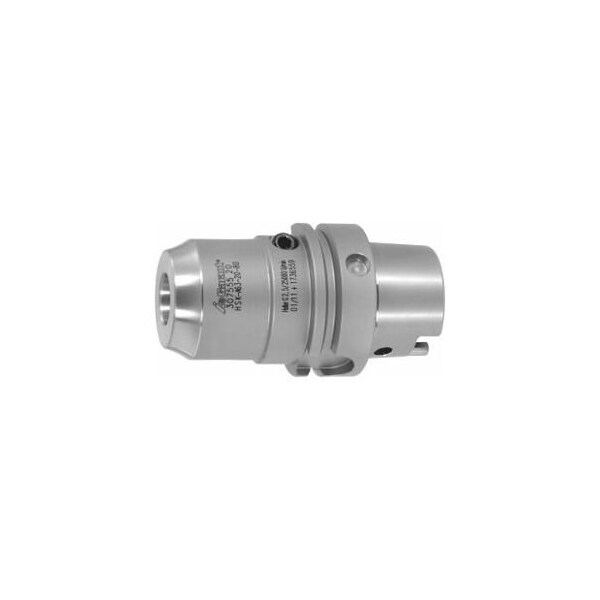

High Torque Hydraulic Chuck, HSK-A 100 Short, Clamping Range: 32mm

  • Mfr # 307555 32
  • Zoro # G014773263

product price:
$
642.99
/ea
Free Shipping & Returns

Key Features

Clamping Dia.
32 mm
Adjustment Travel
10 mm
Length (In.)
71 mm
Taper Size
HSK100A
Outside Dia.
72 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
307555 32
Zoro #
G014773263
UPC #
-
Country of Origin
Germany
Adjustment Travel
10 mm
Shape
A
Balance Quality
G 2.5 at 25,000 rpm
Suitable Reducing Adapter
302180; 302175
Concentricity
≤ 3 µm
Item
Hydraulic clamping chuck
Projection
100 mm

Dimensions

Clamping Dia.
32 mm
Length (In.)
71 mm
Taper Size
HSK100A
Outside Dia.
72 mm

Description

Very high total rigidity due to optimized design. With RFID/Balluffchip bore. Axial length adjustment, adjustment travel 10 mm. Flexible due to use of reducing sleeves. Advantage: Very high transmitted torque 550 Nm, providing high process reliability. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Application: Especially for heavy-duty milling. For clamping tools with shank tolerance h6. Supplied with: Hexagon cross-bar wrench. Optional extras: Coolant tube No. 309880, socket wrench No. 309890, reducing adapters No. 302135 - 302187. Note: Caution in the case of extra-long tools and TPC machining. Clamping Dia D1: 32 mm Overhang dimension A: 100 mm External Dia D: 72 mm Reach L1: 71 mm Adjustment travel V: 10 mm suitable reducing adapter: 302180, 302175

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
