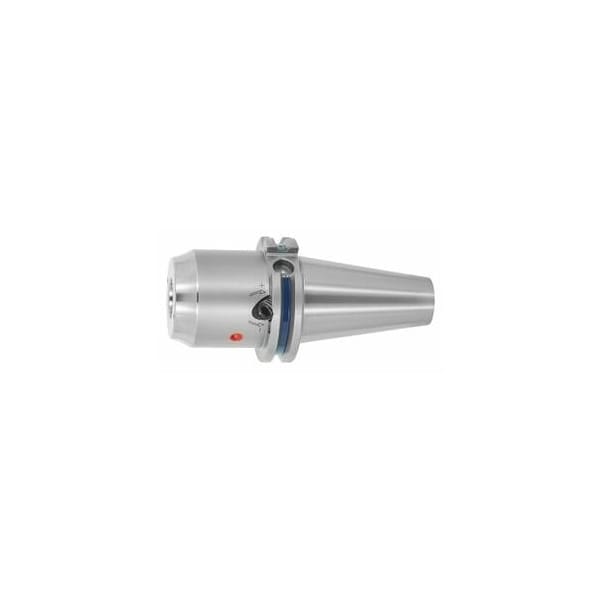

High Torque Hydraulic Chuck with Cooling Channel Bores, SK 40, Clamping Range: 20mm

  • Mfr # 302031 20
  • Zoro # G814775467
product price:
$
631.99
/ea
Free Shipping & Returns

Key Features

Clamping Dia.
20 mm
Standards
ISO 7388-1
Taper Size
SK40
Outside Dia.
49 mm
Balance Quality
G 2.5 at 25,000 rpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
302031 20
Zoro #
G814775467
UPC #
-
Country of Origin
Germany
Standards
ISO 7388-1
Balance Quality
G 2.5 at 25,000 rpm
Suitable Reducing Adapter
302160; 302165; 302150; 302155
Concentricity
≤ 3 µm
Projection
64.5 mm
Cooling Channel Bore
Yes
Shape
ADB
Item
Hydraulic clamping chuck

Dimensions

Clamping Dia.
20 mm
Taper Size
SK40
Outside Dia.
49 mm
Length (In.)
45.5 mm

Description

Very high total rigidity due to optimized design. With RFID/Balluffchip bore. Axial length adjustment adjustment 10 mm available. Flexible due to use of reducing sleeves. Application: For drilling, reaming and for light and heavy-duty machining when milling. Maximum transmissible torque 550 Nm, version HT High Torque. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308820 - 308835, Reducing adapters No. 302135 302187. Note: V = Maximum adjustment range! Caution in the case of extra-long tools and TPC machining. Clamping Dia D1: 20 mm Overhang dimension A: 64.5 mm External Dia D: 49 mm Reach L1: 45.5 mm suitable reducing adapter: 302160, 302165, 302150, 302155
