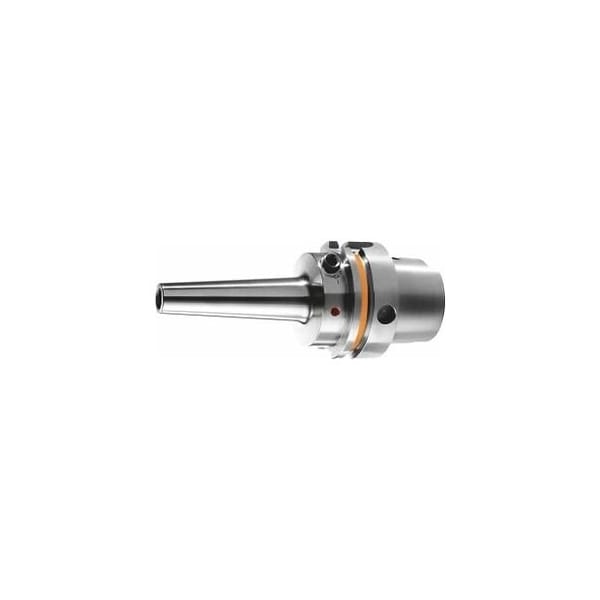

Slim Hydraulic Chuck, HSK-E 40, Projection: 85, Clamping Diameter: 3mm
Mfr # 307526 3
Zoro # G014775526
product price: $1,101.99
/ea
Free Shipping & Returns
Key Features
Shape
A
Taper Size
HSK40E
Concentricity
≤ 3 µm
Balance Quality
G 2.5 at 25,000 rpm
Outside Dia.
34 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
307526 3
Zoro #
G014775526
UPC #
-
Country of Origin
Germany
Dimensions
Taper Size
HSK40E
Outside Dia.
34 mm
Clamping Dia.
3 mm
Details
Shape
A
Concentricity
≤ 3 µm
Item
Hydraulic clamping chuck
Balance Quality
G 2.5 at 25,000 rpm
Balluffchip Bore
Yes
Projection
85 mm
Description
Extremely slim design Extra Slim-contour. With RFID/Balluffchip bore. Axial length adjustment possible. Shanks hard turned. Reducing adapters can be used. Advantage: Temperature-resistant due to completely enclosed system, i.e. no soldered pressure chambers. Ideal damping characteristics. High transmissible torques, providing high process reliability. Application: Especially in operations in toolmaking and mould making. Wherever reduced interference contours are required. For drilling, reaming and milling For clamping tools with shank tolerance h6. Supplied with: Hexagon key with T-handle. Optional extras: Reducing sleeves No. 302135 302165. Clamping Dia D1: 3 mm Overhang dimension A: 85 mm Dia D2: 9 mm Dia D3: 13.7 mm External Dia D: 34 mm L2: 45 mm
