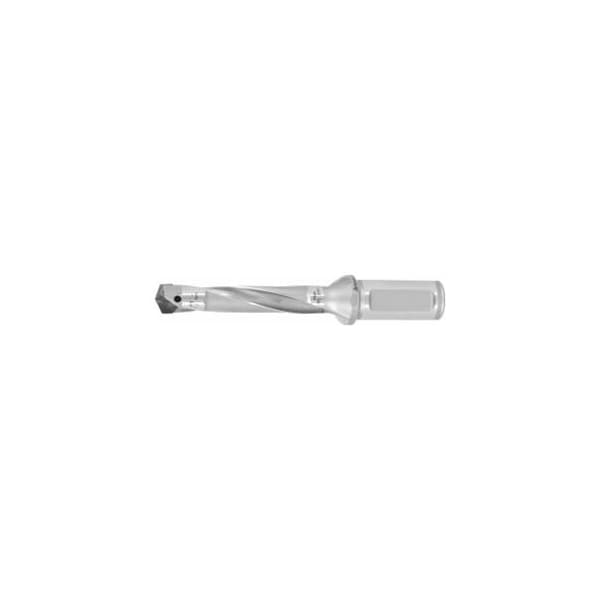

HiPer-Drill Replaceable Tip Drill, 5XD, Diameter Range: 9 mm - 9.49 mm
Mfr # 231610 9
Zoro # G515355753
product price: $360.99
/ea
Free Shipping & Returns
Key Features
Diameter
9 mm
No. of Cutting Edges
1
Shank
DIN 6535 HE, DIN 6595
Overhang
104 mm
Machining Strategy
MTC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
231610 9
Zoro #
G515355753
UPC #
-
Country of Origin
Germany
Dimensions
Diameter
9 mm
Size
20
Overall Length
160 mm
Shank Length
56 mm
Reach Length
80 mm
Depth Limit (Indexable Drill)
4 x D
Details
Item
Indexable Drill
No. of Cutting Edges
1
Shank
DIN 6535 HE, DIN 6595
Overhang
104 mm
Machining Strategy
MTC
Coolant Through
Yes
Max. Adjustment Limit
0.5 mm
Point Angle
180 Deg
Description
Very high feed rates and maximum performance due to optimally matched geometries and materials. Precise positioning of the cutter insert due to Vee insert seating and secure clamping by the Center bore. High concentricity when assembled. For holes up to IT9 accuracy Shank support for optimum stability in operation. Created by an additive procedure. Application: For stationary and rotating use. For holes up to IT9 accuracy. Note: The insert screw must be replaced after every fifth change of cutter insert. Further sizes up to 0 50.99 mm available on request. Clamp in a hydraulic chuck such as No. 302026 size 20 for optimum radial run-out. For optimum stability, clamp the drill so the overhang is as short as possible. Number of cutting edges Z: 2 Dia. range Dc: 9 9.49 mm Reach L1: 48 mm Shank 0 Ds: 12 mm Shank length Ls: 45 mm Clamping screw: 231999 5IP1 0.2 Nm
