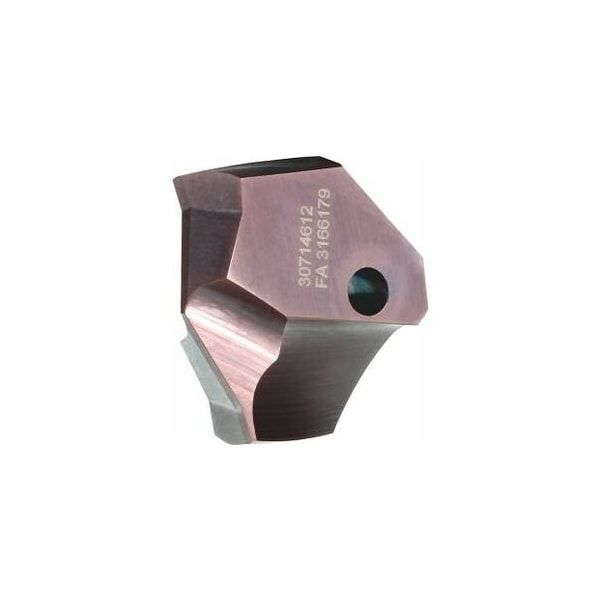

HiPer-Drill Replaceable Tip Drill Insert, for Stainless Steel, Counterbore Diameter: 33 mm
Mfr # 231690 33
Zoro # G815355583
product price:Â
$
285.99
/ea
Free Shipping & Returns
Key Features
Manufacturer Series
Power Drill
Shank Dia.
40 mm
Shank Length
68 mm
Shank Type
ISO 9766
No. of Edges
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 231690 33
- Zoro #
- G815355583
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Insert Size
- 33 mm
- Shank Dia.
- 40 mm
- Shank Length
- 68 mm
- Reach Length
- 96 mm
- Depth Limit (Indexable Drill)
- 3 x D
- Size
- 32
Details
- Item
- Indexable drill
- Manufacturer Series
- Power Drill
- Shank Type
- ISO 9766
- No. of Edges
- 1
- Max. Adjustment Limit
- 0.25 mm
- Coolant Through
- Yes
- Machining Strategy
- HPC
- Overhang
- 120 mm
- Point Angle
- 180 Deg
Description
Vee ground cutter inserts for precise positioning and stable seating. Form E 180 Deg cutter with 142 Deg Center point and 0.5 mm protective chamfer Application: For through holes for screws to DIN-ISO 273 and countersinking to DIN74, sheet2 formH, J and K, medium version. For screws to DIN912, 6912 and 7984, ISO1207 DIN84. Note: Further sizes available on request. Cutting data apply for drilling bodies 5xD. Countersink angle: 180 degrees for DIN cylinder head screws: M20 suitable for through hole 0: 21 mm
