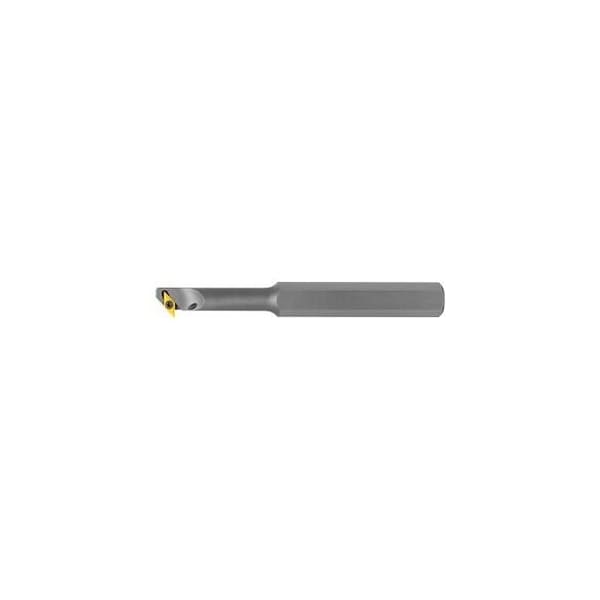

HSS Boring Bar, AH0812H SGSPRS5, for GPCT S5 Inserts, Right-Hand
Mfr # 268802 65/S5
Zoro # G814820495
product price: $171.99
/ea
Free Shipping & Returns
Key Features
Insert Shape
Diamond
Insert Assignment
neutral
Insert Size
5 mm
Center Offset
6.4 mm
Min. Pre-Drill Diameter Dmin
10.72 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
268802 65/S5
Zoro #
G814820495
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Insert Size
5 mm
Min. Pre-Drill Diameter Dmin
10.72 mm
Head Length
32 mm
Overall Length
100 mm
Clamping Height
11.15 mm
Free Length
65 mm
Neck Width
8 mm
Max. Bore Dia.
5 x D
Shank Dia.
12 mm
Details
Insert Shape
Diamond
Insert Assignment
neutral
Center Offset
6.4 mm
Item
Boring bar
Cutting Direction
Right-Hand
Setting Angle
45 Angle
Application
Internal longitudinal turning
Coolant Through
Yes
ISO Number
AH0812H SGSPR/LS5
Material
HSS
Shank Type
Boring bar
Description
Boring bar HSS 65/S5 mmStandard: Works standard Shank Diameters: 12 mm ISO code toolholder: AH0812H SGSPR/LS5 Setting angle k: 45 degrees suitable indexable insert: GPCT S5010. Minimum pre-drill Diametermin: 10.72 mm Center offset L3: 6.4 mm
