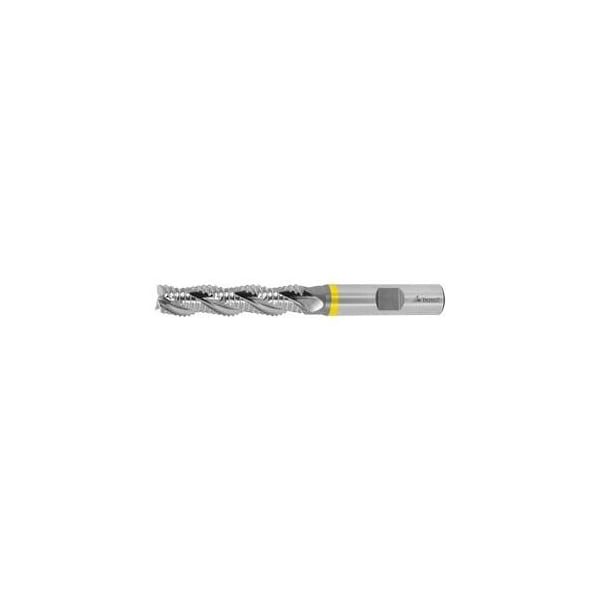

HSS Co8 Roughing End Mill, Uncoated, 18 mm

  • Mfr # 192520 18

  • Zoro # G314376775

product price:  $95.79
/ea

Key Features

Milling Diameter
18 mm
Length of Cut
63 mm
Overall Length
123 mm
Shank Dia.
16 mm
Helix Angle
36 Degrees
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
192520 18
Zoro #
G314376775
UPC #
-
Country of Origin
Japan

Dimensions

Milling Diameter
18 mm
Length of Cut
63 mm
Overall Length
123 mm
Shank Dia.
16 mm
Tolerance Nominal Diameter
js14
Maximum Cutting Depth Ap Max When Slot Milling From Solid
18 mm
Min. Cutting Depth
0.3 mm
Maximum Cutting Depth Ap Max When Side Milling
63 mm
Corner Chamfer Width at 45°
0.5 mm

Details

Helix Angle
36 Degrees
Shank Type
DIN 1835 B to h6
End Mill Material
Cobalt High Speed Steel
Corner Chamfer Angle
45 Degrees
Milling profile
WR
Color Ring
yellow
Type of Product
End Mill
Feed Fz For Slot Milling in Short-Chipping Aluminium
0.075 mm
Standard
DIN 844 B
Coolant Through
no
Shank Tolerance
h6
Correction Factor Fz
1.25
End Mill Style
Chamfer
Finish
uncoated
Number of Flutes
3
Cutting Direction
horizontal, oblique and vertical

Description

Relief ground knuckle form profile. Center cutting teeth for plunging. Wide, precision ground chip flutes. Special chip angle for aluminium and non-ferrous metals. Advantage: Suitable for high machining volumes due to the large flutes.
