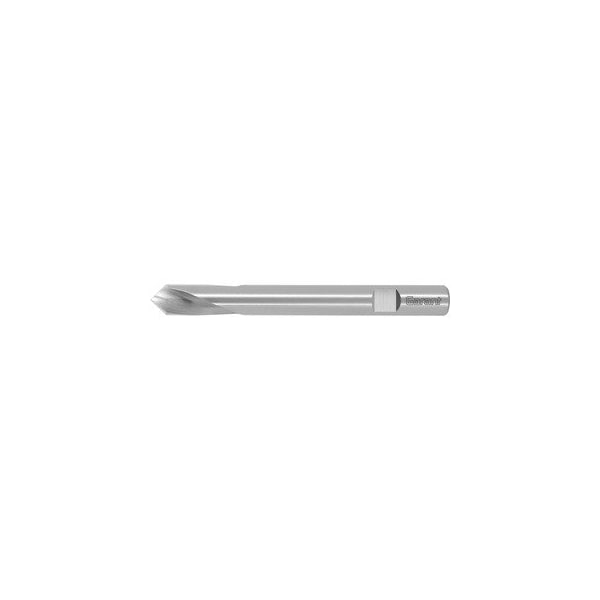

HSS-E NC Spotting Drill, 4 mm, 90 Deg, Spiral Flutes, Uncoated
Mfr # 112000 4
Zoro # G009578361
product price:Â
$
10.39
/ea
Key Features
Material - Machining
HSS E
Drill Bit Point Angle
90°
Finish - Machining
uncoated
Overall Length
55 mm
Drill Bit Size
4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 112000 4
- Zoro #
- G009578361
- UPC #
- 4045197001030
- Country of Origin
- Germany
Dimensions
- Overall Length
- 55 mm
- Shank Dia.
- 4 mm
- Drill Bit Size
- 4 mm
- Body Dia.
- 4 mm
- Flute length
- 12 mm
- Diameter Tolerance
- h6
- Length of Cut
- 12 mm
Details
- Item
- Spotting Drill
- Material - Machining
- HSS E
- Drill Bit Point Angle
- 90°
- Finish - Machining
- uncoated
- Type
- N
- Shank Type - Machining
- DIN 1835 B to h6
- Number of Flutes
- 2
- Drill Bit Finish
- Uncoated
- Drill Bit Material
- HSS E
- Number of Teeth
- 2
- Shank Tolerance
- h6
- Coolant Through
- No
- Feed in Steel
- 0.03 mm/rev.
- Ring Color
- Without
- Through Coolant
- No
Description
dia 6 mm with drive flat to DIN 1835-B. Precision centerd ground point with thin chisel edge - gives easy spot drilling and high accuracy of the center hole form. Very sturdy due to short flutes. Note: Use speed for the actual hole dia not necessarily the speed for the drill outer dia . Shank: DIN 1835 B to h6 Flute length Lc: 12 mm Overall length L: 55 mm Shank dia Ds: 4 mm Feed f in steel < 900N/mm2: 0.03 mm/rev.
