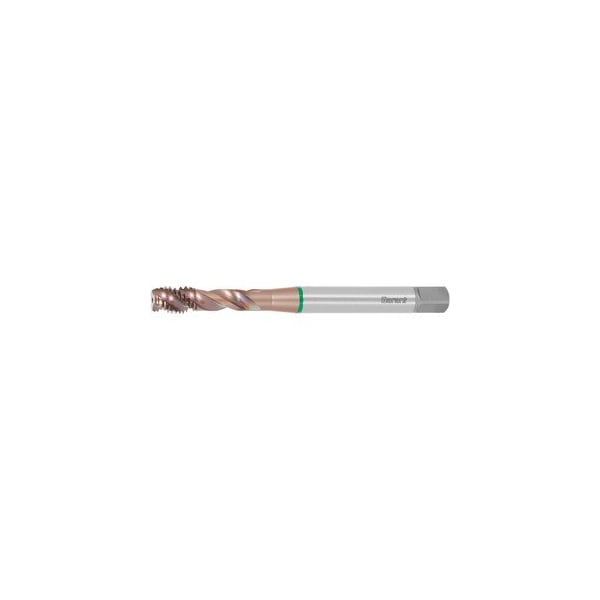

HSS-E-PM Blind Hole Machine Tap, M2 Tap Thread Size, AlTix Coated
Mfr # 135960 M2
Zoro # G209574286
product price: $51.59
/eaKey Features
Shank Dia.
2.8 mm
Tap Material
HSS E PM
Standard
Thread Standard - DIN 13, DIN 371
Overall Length
45 mm
Thread Direction
Right-Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
135960 M2
Zoro #
G209574286
UPC #
4045197899705
Country of Origin
Japan
Dimensions
Shank Dia.
2.8 mm
Overall Length
45 mm
Thread Length
5 mm
Thread Size
M2
Tapping Hole Diameter
1.6 mm
Thread Diameter
2 mm
Shank Square Size
2.1 mm
Description
Universal taps- designed for use in a wide spectrum of materials with high process reliability. - HSS-E-PM tool material for a high degree of wear resistance. - Reduced coefficient of friction due to the new high-performance coating. - Special geometry for optimum swarf evacuation. Corresponds to ISO 2X/6HX. Thread type: M Tool material: HSS E PM Standard: DIN 371 Tolerance class: ISO 2X 6HX Thread pitch: 0.4 mm Overall length L: 45 mm Shank dia Ds: 2.8 mm Shank square : 2.1 mm Tapping hole dia : 1.6 mm
