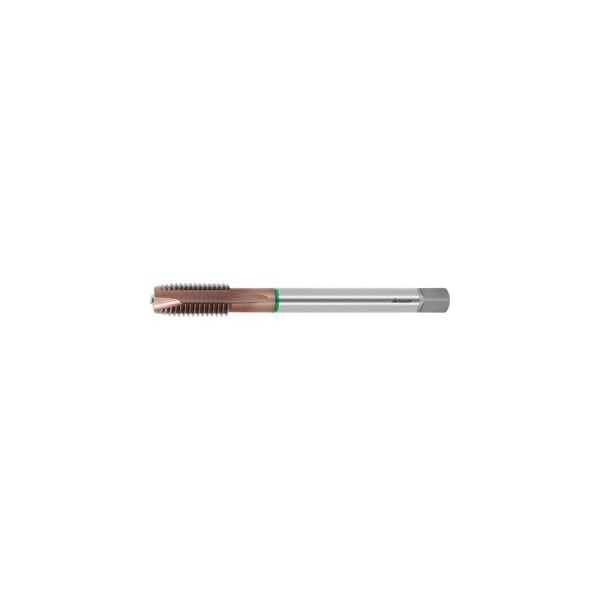

HSS-E-PM Through Hole Machine Tap, 3/4-10 Tap Thread Size, AlTix Coated
- Mfr # 133360 3/4-10
- Zoro # G009574363
product price:Â
$
110.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
14 mm
Tap Material
HSS E PM
Standard
DIN 376
Overall Length
125 mm
Thread Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 133360 3/4-10
- Zoro #
- G009574363
- UPC #
- 4045197901736
- Country of Origin
- Japan
- Item
- Tap
- Tap Material
- HSS E PM
- Standard
- DIN 376
- Thread Direction
- Right-Hand
- Number of Flutes
- 3
- Application
- up to 3xD for through Holes
- Thread Type
- UNC
- Thread type
- UNC
- Coolant Through
- No
- Flank Angle
- 60°
- Threads per Inch
- 10
- Finish
- AlTiX
- Taper Lead Form
- B
- Taper Lead Angle
- 8°
- Shank Type
- Plain Shank with h9
- Ring Color
- Green
- Thread Pitch
- 2.54 mm
- Tolerance Class
- 2BX
- Series
- Master Tap
- Number of Teeth
- 3
- Tool Type
- Machine tap for dynamic machining
- Tolerance
- 2BX
- Number of Clamping Slots
- 3
- Threads per inch
- 10
Description
GARANT Master Tap universal taps- designed for use in a wide spectrum of materials with high process reliability. - HSS-E-PM tool material for maximum wear resistance. - Reduced coefficient of friction due to the new high-performance coating. - Special geometry for optimum swarf evacuation. Application: For UNC uniform coarse threads ASME - B1.1. Thread type: UNC Tool material: HSS E PM Standard: DIN 376 Threads per inch: 10 Thread dia : 19.05 mm Overall length L: 125 mm Shank dia Ds: 14 mm Shank square : 11 mm Tapping hole dia : 16.5 mm
