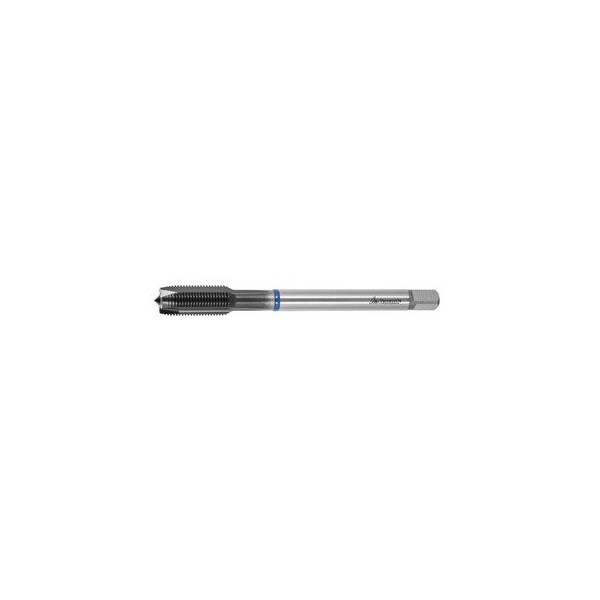

HSS-E-PM Through Hole Machine Tap for Stainless Steel, 1-8 Tap Thread Size, TiAlN Coated
Mfr # 133356 1-8
Zoro # G609574121
product price:Â
$
216.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
18 mm
Tap Material
HSS E PM
Standard
DIN 376
Overall Length
160 mm
Thread Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 133356 1-8
- Zoro #
- G609574121
- UPC #
- 4062406209636
- Country of Origin
- Germany
- Item
- Tap
- Tap Material
- HSS E PM
- Standard
- DIN 376
- Thread Direction
- Right-Hand
- Number of Flutes
- 4
- Application
- up to 3xD for through Holes
- Thread Type
- UNC
- Thread type
- UNC
- Tolerance Class
- 2BX
- Shank Type
- Plain Shank with h9
- Number of Teeth
- 4
- Taper Lead Form
- B
- Flank Angle
- 60°
- Tool Type
- Machine tap for dynamic machining
- Taper Lead Angle
- 8°
- Finish
- TiAlN
- Series
- Master Tap
- Coolant Through
- No
- Threads per Inch
- 8
- Ring Color
- Blue
- Thread Pitch
- 3.175 mm
- Threads per inch
- 8
- Tolerance
- 2BX
- Number of Clamping Slots
- 4
Description
High-performance tap- specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. - HSS-E-PM tool material for maximum wear resistance - The latest generation of TiAlN multi-layer coating - Parameterised flute geometry for optimum chip formation and torsional rigidity Application: For UNC uniform coarse threads ASME - B1.1. Thread type: UNC Tool material: HSS E PM Standard: DIN 376 Threads per inch: 8 Thread dia : 25.4 mm Overall length L: 160 mm Shank dia Ds: 18 mm Shank square : 14.5 mm Tapping hole dia : 22.25 mm
