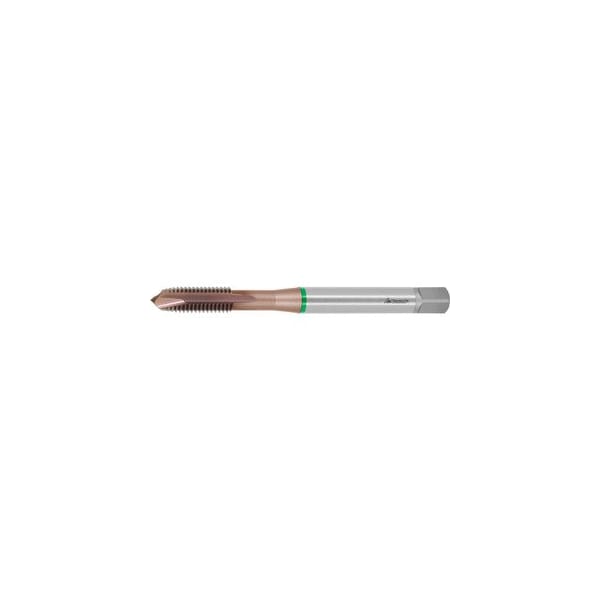

HSS-E-PM Through Hole Machine Tap, M2.2 Tap Thread Size, AlTiX Coated
- Mfr # 132721 M2,2
- Zoro # G409574154
product price:Â
$
46.99
/ea
Key Features
Shank Dia.
2.8 mm
Tap Material
HSS E PM
Standard
Thread Standard - DIN 13, DIN 371
Overall Length
45 mm
Thread Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 132721 M2,2
- Zoro #
- G409574154
- UPC #
- 4045197984128
- Country of Origin
- Japan
- Item
- Tap
- Tap Material
- HSS E PM
- Standard
- Thread Standard - DIN 13, DIN 371
- Thread Direction
- Right-Hand
- Number of Flutes
- 2
- Application
- up to 3xD for through Holes
- Thread Type
- Metric Course
- Thread type
- M
- Thread Pitch
- 0.45 mm
- Number of Teeth
- 2
- Tolerance Class
- ISO 2X 6HX
- Tool Type
- Machine tap for dynamic machining
- Ring Color
- Green
- Series
- Master Tap
- Taper Lead Form
- B
- Shank Type
- Plain Shank with h9
- Flank Angle
- 60°
- Taper Lead Angle
- 8°
- Coolant Through
- No
- Thread Standards
- DIN 13
- Finish
- AlTiX
- Tolerance
- ISO 2X 6HX
- Number of Clamping Slots
- 2
Description
Universal taps- designed for use in a wide spectrum of materials with high process reliability. - HSS-E-PM tool material for a high degree of wear resistance. - Reduced coefficient of friction due to the new high-performance coating. - Special geometry for optimum swarf evacuation. Corresponds to ISO 2X/6HX. Thread type: M Tool material: HSS E PM Standard: DIN 371 Tolerance class: ISO 2X 6HX Thread pitch: 0.45 mm Overall length L: 45 mm Shank dia Ds: 2.8 mm Shank square : 2.1 mm Tapping hole dia : 1.75 mm
