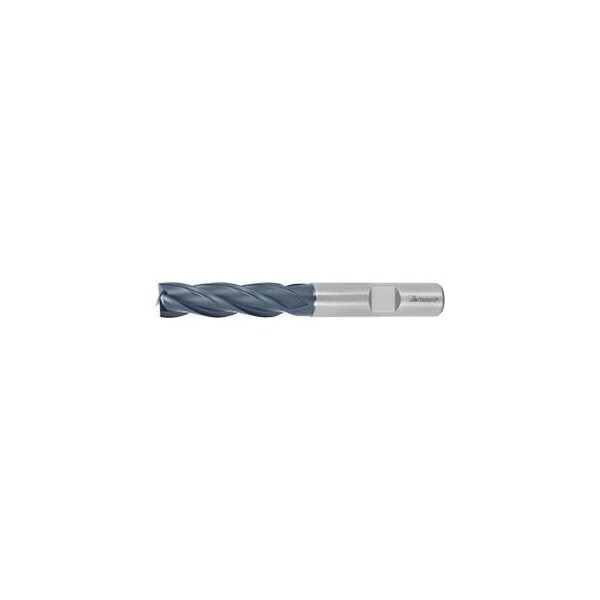

HSS-PM End Mill, TiAlN Coated, 8M mm
Mfr # 191520 8M
Zoro # G814373908
product price: $39.99
/eaKey Features
Type of Product
End Mill
Min. Cutting Depth
0.01 mm
Shank Tolerance
h6
Color Ring
without
Standard
DIN 844 B
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
191520 8M
Zoro #
G814373908
UPC #
-
Country of Origin
Spain
Dimensions
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
k10
Shank Dia.
10 mm
Milling Diameter
8 mm
Overall Length
78 mm
Depth of Cut
28 mm (side milling)
Length of Cut
28 mm
Details
Type of Product
End Mill
Shank Tolerance
h6
Color Ring
without
Standard
DIN 844 B
Correction Factor Fz
1.25
Finish
TiAlN
End Mill Material
Powdered Metal
Cutting Direction
horizontal, oblique and vertical
Coolant Through
No
Number of Flutes
4
Shank Type
DIN 1835 B to h6
Helix Angle
30-40 Degrees
Top Corner Chamfer Angle
90 Degrees
Type
N
End Mill Style
Square
Description
Multi-flute end mill. Eccentric relief ground. For the highest demands in respect to material removal rates. Excellent results when milling dry. Size 6M-25M MID mills: Dimensions to manufacturer's standard, which lies between DIN 844 short and DIN 844 long. Particularly suitable for mould and tool making, as the medium length provides higher rigidity than long series mills to DIN 844.
