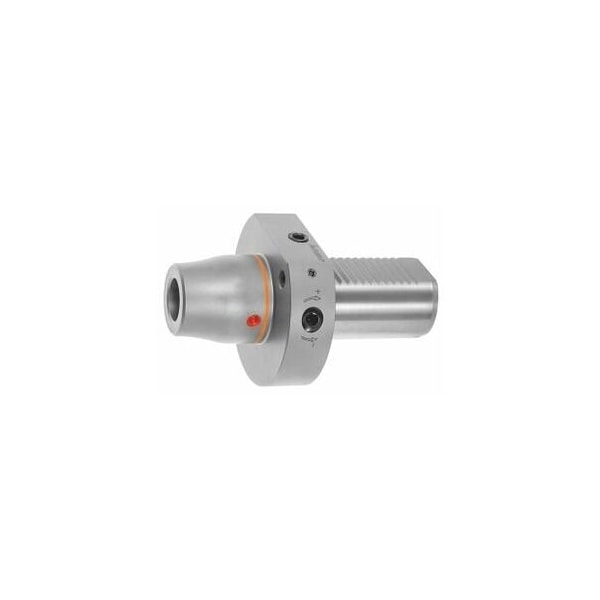

Hydraulic Arbor, VDI 40, Diameter: 20mm

Unique clamp bridging, clamps h6 and h7 shanks. Laser finished on the end face and alignment screw on the bracket, for simple and clear orientation of the boring bar. Including length adjustment backstop screw. Suitable for through-coolant. Two attachment screws for the best accessibility, be it at the headstock or tailstock. Supplied with ball spray nozzle. Advantage: Ideal damping characteristics, resulting in optimum component surfaces. and increased tool life. Quick and easy handling. Flexible use of reducing adapters. Perfect centering. Application: Suitable for drilling, reaming, countersinking and also for use of boring bars. Clamping Dia D1: 20 mm Overhang dimension A: 64 mm External Dia D: 42 mm Reach L1: 42 mm
