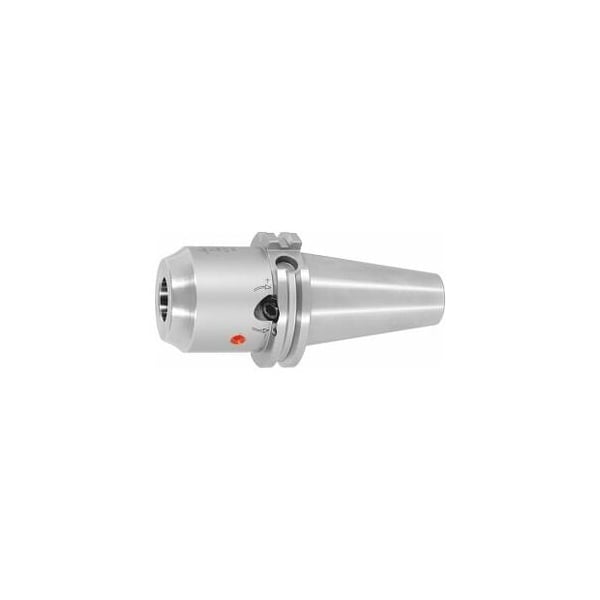

Hydraulic Chuck, Short, High Torque, SK50, Clamping Range: 32mm
Mfr # 302029 32
Zoro # G014775571
product price:Â $607.99
/ea
Free Shipping & Returns
Key Features
Suitable Reducing Adapter
302180; 302175
Concentricity
≤ 3 µm
Taper Size
SK50
Outside Dia.
72 mm
Standards
ISO 7388-1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302029 32
- Zoro #
- G014775571
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- SK50
- Outside Dia.
- 72 mm
- Clamping Dia.
- 32 mm
- Length (In.)
- 62 mm
Details
- Suitable Reducing Adapter
- 302180; 302175
- Concentricity
- ≤ 3 µm
- Standards
- ISO 7388-1
- Balance Quality
- G 2.5 at 25,000 rpm
- Shape
- ADB
- Projection
- 81 mm
- Item
- Hydraulic clamping chuck
Description
Very high total rigidity due to optimized design. With RFID/Balluffchip bore. Axial length adjustment adjustment 10 mm available. Flexible due to use of reducing sleeves. Application: For drilling, reaming and for light and heavy-duty machining when milling. Maximum transmissible torque 550 Nm, version HT High Torque. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308820 - 308835, Reducing adapters No. 302135 302187. Note: V = Maximum adjustment range! Caution in the case of extra-long tools and TPC machining. Machining strategy: HPC Clamping Dia D1: 32 mm Overhang dimension A: 81 mm External Dia D: 72 mm Reach L1: 62 mm suitable reducing adapter: 302180, 302175
