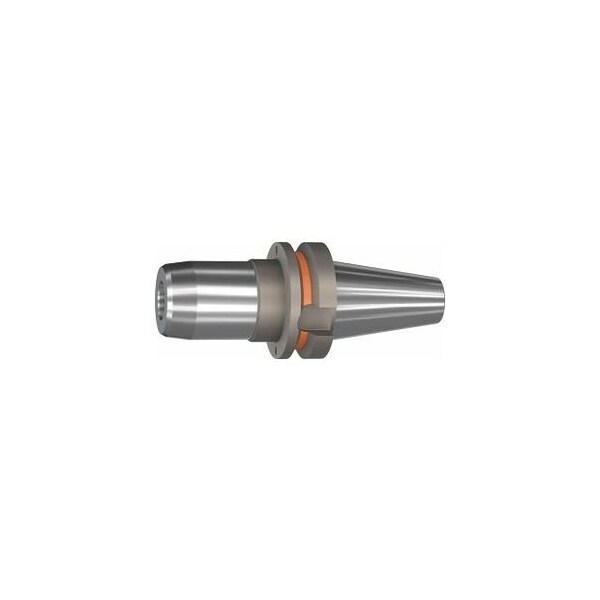

Hydraulic Chuck, Slim, Form ADB, BT 40, Clamping Range: 8mm
Mfr # 303473 8
Zoro # G614774271
product price:Â
$
500.99
/ea
Free Shipping & Returns
Key Features
Machining Strategy
HPC
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 3 µm
Overhang Length
63 mm
Outside Dia.
44.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 303473 8
- Zoro #
- G614774271
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overhang Length
- 63 mm
- Outside Dia.
- 44.5 mm
- Thread Size
- M6
- Clamping Dia.
- 8 mm
- Dia.
- 28 mm
- Taper Size
- BT40
Details
- Machining Strategy
- HPC
- Balance Quality
- G 2.5 at 25,000 rpm
- Concentricity
- ≤ 3 µm
- Balluffchip Bore
- Yes
- Coolant Through
- Yes, With Max. 80 Bar
- Projection
- 90 mm
- Item
- Hydraulic clamping chuck
- Shape
- ADB
Description
Radial run-out 3 um. With RFID/Balluffchip bore. Axial length adjustment possible adjustment range V = 10 mm. Flexibility thanks to the use of reducing adapters. Coolant pressure up to 80 bar. Application: For drilling, reaming and finish milling. Delivery conditions: Incl. length adjustment screw and hexagon key with T-handle. Clamping Dia D1: 8 mm Overhang dimension A: 90 mm Dia D2: 28 mm External Dia D: 44.5 mm L2: 44.5 mm Thread M: M6
