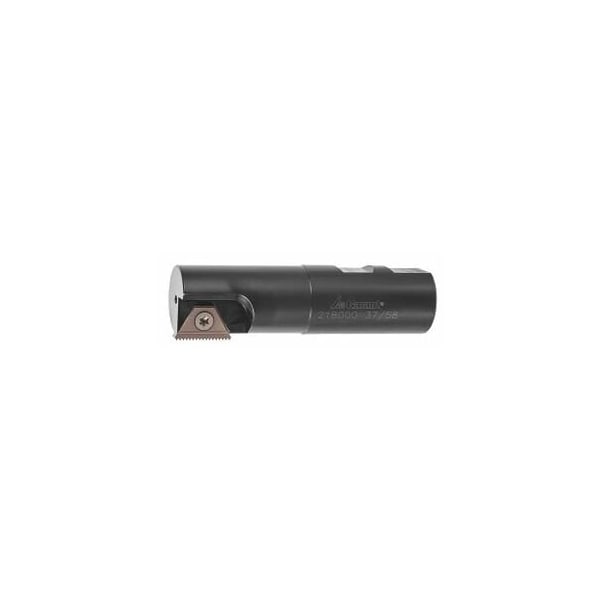

Indexable Thread Mill, with Weldon Flat, 37mm Diameter
Mfr # 218000 37/58
Zoro # G516120381
product price:Â
$
492.99
/ea
Free Shipping & Returns
Key Features
Overall Length
120 mm
Shank Dia.
32 mm
Cutting Direction
left-hand and right-hand
Coolant Through
Yes
Insert Size
27
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 218000 37/58
- Zoro #
- G516120381
- UPC #
- -
- Country of Origin
- Israel
Dimensions
- Overall Length
- 120 mm
- Shank Dia.
- 32 mm
- Insert Size
- 27
- Max. Cutting Depth
- 35 mm
- Effective Diameter
- 37 mm
Details
- Item
- thread milling cutter
- Cutting Direction
- left-hand and right-hand
- Coolant Through
- Yes
- Clamp Screw
- 219925
- Effective Dia/Overhang
- 37 mm/58 mm
- Number of Clamping Slots
- 1
- For Hole Type
- Blind hole
- Number of Teeth
- 1
- Overhang
- 58 mm
- Shank Type
- Weldon shank
Description
Application: - For parallel internal and external threads- other inserts and taper thread tools available on request. - For threads in through holes and blind holes. - For universal use cutting left-hand and right-hand threads. - No chip clearance problems- since only short chips are produced. - Low cutting pressure. Note: Version with double HB drive flat. Through-coolant: yes Insert size: 27 Number of cutting edges Z: 1 Overall length L: 120 mm ShankDs: 32 mm Clamping screw: 219925
