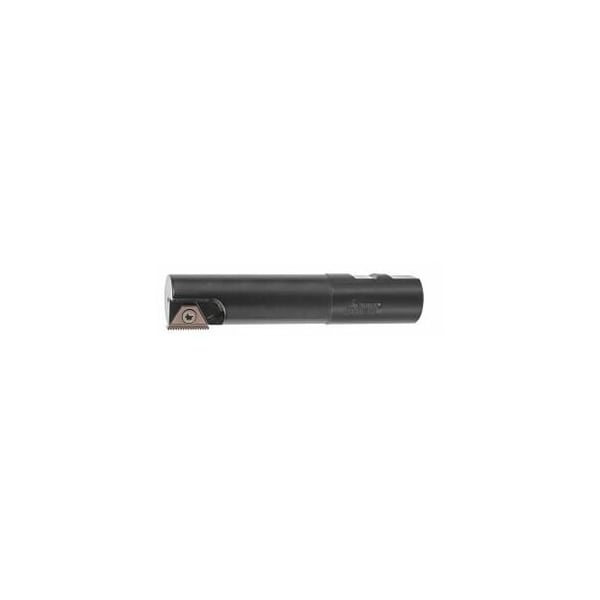

Indexable Thread Mill, with Weldon Flat, 37mm Diameter
Mfr # 218000 37/98
Zoro # G116120354
product price:Â $509.99
/ea
Free Shipping & Returns
Key Features
Overall Length
160 mm
Shank Dia.
32 mm
Cutting Direction
left-hand and right-hand
Insert Size
27
Clamp Screw
219925
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
218000 37/98
Zoro #
G116120354
UPC #
-
Country of Origin
Israel
Dimensions
Overall Length
160 mm
Shank Dia.
32 mm
Insert Size
27
Effective Diameter
37 mm
Max. Cutting Depth
35 mm
Details
Item
thread milling cutter
Cutting Direction
left-hand and right-hand
Clamp Screw
219925
Coolant Through
Yes
Effective Dia/Overhang
37 mm/98 mm
Number of Clamping Slots
1
Overhang
98 mm
For Hole Type
Blind hole
Number of Teeth
1
Shank Type
Weldon shank
Description
Application: - For parallel internal and external threads- other inserts and taper thread tools available on request. - For threads in through holes and blind holes. - For universal use cutting left-hand and right-hand threads. - No chip clearance problems- since only short chips are produced. - Low cutting pressure. Note: Version with double HB drive flat. Through-coolant: yes Insert size: 27 Number of cutting edges Z: 1 Overall length L: 160 mm ShankDs: 32 mm Clamping screw: 219925
