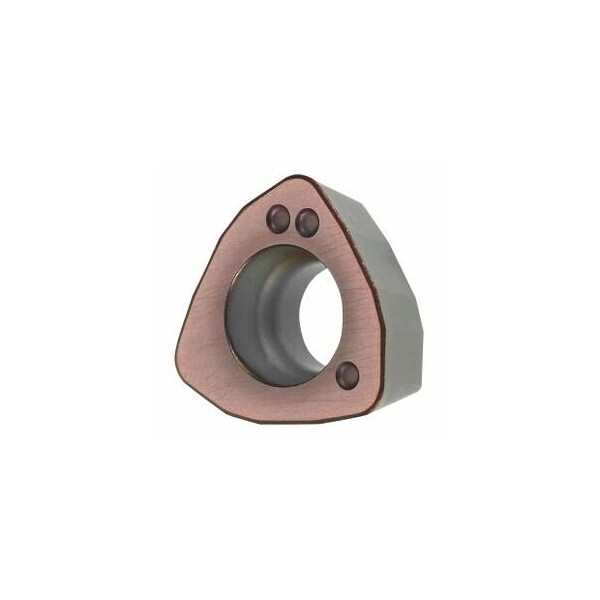

Insert for High Feed Rate Milling Cutter, XOMW060310ZZSR, for Hard Machining
Mfr # 212830 HART
Zoro # G516115837
product price:Â
$
15.79
/ea
Key Features
Grade
HB4715
Insert Thickness
3.18 mm
Insert Material
Carbide
Insert Type
XOMW060310ZZSR
Corner Radius
1 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212830 HART
- Zoro #
- G516115837
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Insert Thickness
- 3.18 mm
- Corner Radius
- 1 mm
- Max. Cutting Depth
- 1 mm
- Min. Cutting Depth
- 0.15 mm
Details
- Grade
- HB4715
- Insert Material
- Carbide
- Insert Type
- XOMW060310ZZSR
- Item
- Indexable insert for milling
- Number of Changes/Inserts
- 3
- Indexable insert clearance angle
- 13°
- Type
- HART
- Feed Per Tooth
- 0.4 mm
- Correction Factor
- 2.5
Description
Note: Standard application values for ae = 0.5...1xD / ap max Programming radius at ap max: 2 mm Feed fz per tooth: 0.4 mm Insert thickness S: 3.18 mm
