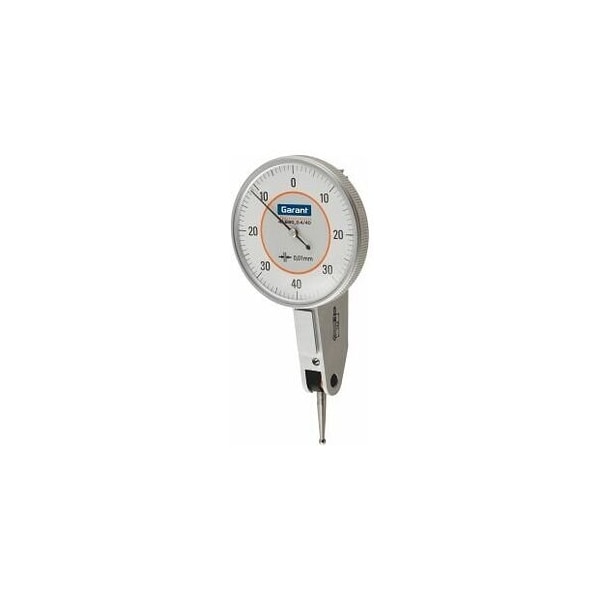

Lever Dial Indicator, Contact Point Length: 14.5 mm, Measuring Range/Body Diameter: 0.4/40mm
- Mfr # 436190 0,4/40
- Zoro # G014554848
product price:Â
$
144.99
/ea
Free Shipping & Returns
Key Features
Contact Point Length
14.5 mm
Standards
DIN 2270
Measurement Ball Diameter
2 mm
Measurement Technology
analogue
Measuring Range per Direction
0.4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 436190 0,4/40
- Zoro #
- G014554848
- UPC #
- -
- Country of Origin
- Czechia
Dimensions
- Contact Point Length
- 14.5 mm
- Measurement Ball Diameter
- 2 mm
- Body Dia.
- 40 mm
- Clamping Shank Dia. (h6)
- 8 mm
Details
- Item
- Lever dial indicator
- Standards
- DIN 2270
- Measurement Technology
- analogue
- Measuring Range per Direction
- 0.4 mm
- Packaging
- sturdy box
- Gauging Force
- 0.15 N
- Pivot Range
- 2×110 Degrees
- Scale Divisions
- 0.01 mm
Description
High-precision lever dial indicator with jewel-mounted mechanism, in handy, robust design. Housing and dovetail block are of one piece, which means that mounting is particularly rigid. Corrosion protection due to matte chrome-plated housing. With 1/100 reading. GARANT ruby mounted mechanism with carbide measurement ball. Particularly exact alignment of the contact point, anti-magnetic. Application: As an accurate dial bore gage for testing variations from nominal size, testing concentricity, internal measurements, testing of parallelism, and flatness as well as for aligning components. Supplied with: Clamping spigot Diameter 8 mm.
