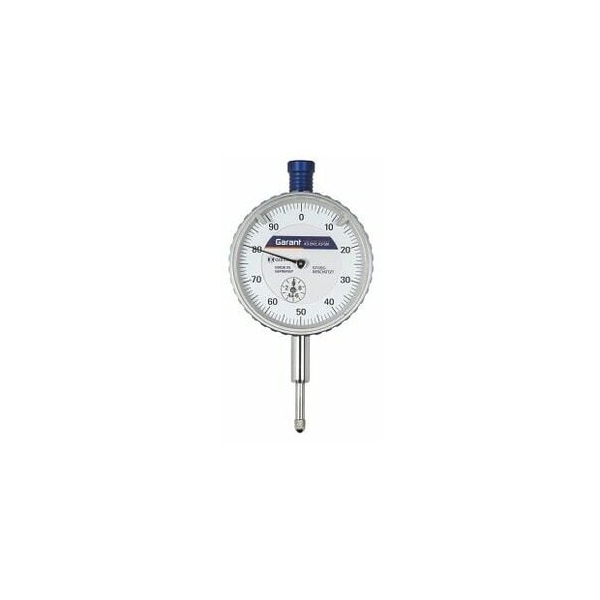

Dial Indicator, Shock-Resistant, Measuring Range / Body Diameter: 10/58 mm
Mfr # 432110 10/58
Zoro # G414556763
product price:Â
$
88.69
/ea
Key Features
Graduations
0.01 mm
Standards
DIN 878
Measurement Technology
Analogue
Body Dia.
58 mm
Rotatable Dial Face
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 432110 10/58
- Zoro #
- G414556763
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Body Dia.
- 58 mm
Details
- Graduations
- 0.01 mm
- Standards
- DIN 878
- Item
- dial gauge
- Measurement Technology
- Analogue
- Rotatable Dial Face
- Yes
- Max. Permissible Error
- 15 µm
- Gauging Force
- 0.7 N
- Packaging
- sturdy box
- Measuring Range
- 10 mm
- Adjustable Tolerance Marks
- Yes
- Reading per Pointer Revolution
- 1 mm
Description
Dimensions to DIN EN ISO 463, issue June 2006. Shock-resistant precision dial indicators. Clamping shank Diameter 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial. Outer ring with 2 adjustable tolerance pointers. Central pointer for 1/100 mm reading, small pointer on sub-scale for 1 mm reading. Protected against shocks to the gears. With metal outer ring and metal back. Shocks are not transmitted directly to the mechanism. Particularly strong and tough. Standard: Shock-resistant precision dial indicators. Clamping shank Diameter 8 mm h6 hardened and ground. Outer ring of dial face can be rotated to zero the dial. Outer ring with 2 adjustable tolerance pointers. Central pointer for 1/100 mm reading small pointer on sub-scale for 1 mm reading. Optional extras: Special contact points No. 434900, 434910, 434915.
