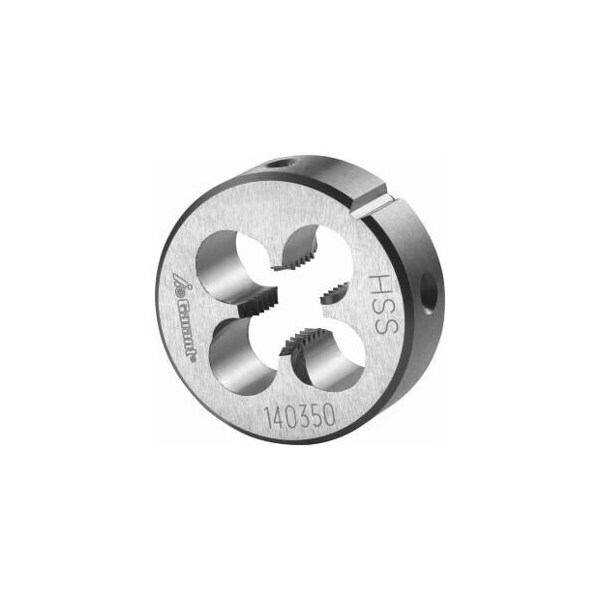

M16X2 HSS Round Die, Closed/Pre-Slit Form
Mfr # 140350 M16
Zoro # G614391539
product price: $94.89
/ea
Free Shipping & Returns
Key Features
Thread Type
M
Die Material
HSS
Pitch
2 mm
Size
M16 mm
Standards
EN 22568
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
140350 M16
Zoro #
G614391539
UPC #
-
Country of Origin
Germany
Dimensions
Die Thread Size
M16X2
Size
M16 mm
Details
Item
Die
Thread Type
M
Die Material
HSS
Pitch
2 mm
Standards
EN 22568
Description
Closed, pre-slit form. M3 with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1 3/4 turns lead chamfer. Tolerance zone 6e = with undersize approx. 0.03 0.04 mm. For tolerance class medium, when studs are provided with a galvanic protection coating. Cutting direction: right-hand Tolerance class: DIN 13 6e Pitch: 2 mm External Dia. 45 mm Height: 18 mm
