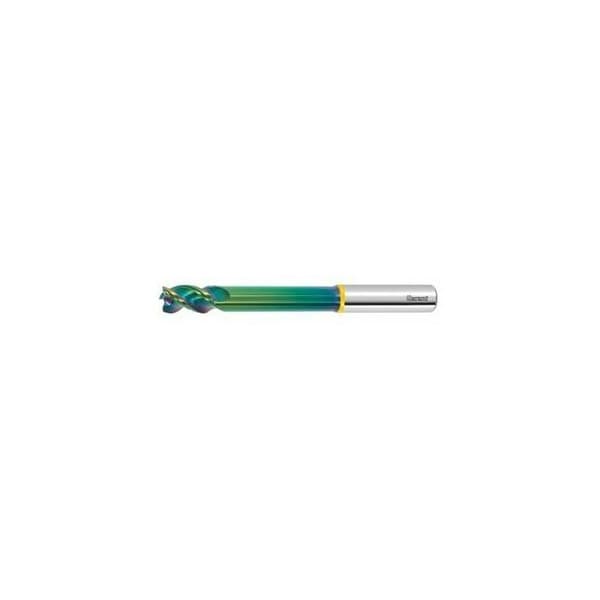

Master Alu PickPocket Solid Carbide Torus End Mill, for Aluminum, DLC Coated, 10/0.5 mm

Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping non-ferrous materials. Very high feed rates when plunging vertically. Ramping capability up to 45 Deg. Tolerances: Corner radiusR1 = 0.5 tolerance ±0.02 mm. R1 > 0.5 1.5 tolerance ±0.03 mm. R1 > 1.5 tolerance ±0.05 mm. No. of teeth Z: 3 Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 3 Flute length Lc: 16 mm Corner radius R1: 0.5 mm Overhang length L1 incl. recess: 68 mm Recess Dia. D1: 9.2 mm Overall length L: 110 mm
