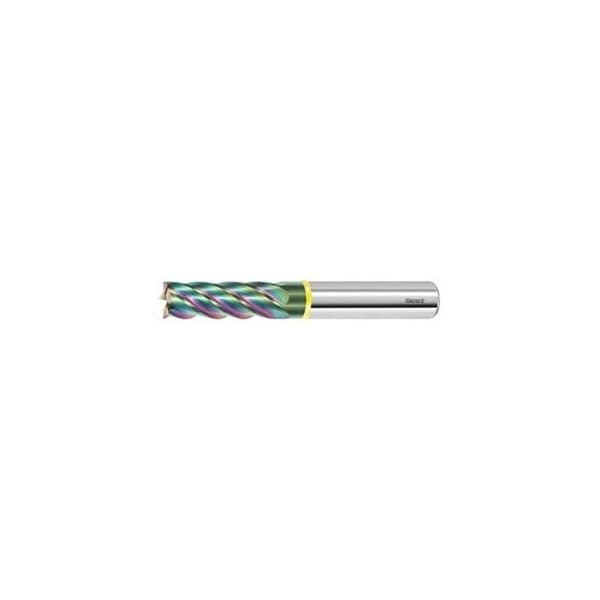

Master Alu Solid Carbide End Mill, DLC Coated, 20 mm
Mfr # 203203 20
Zoro # G214381176
product price:Â $448.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
20 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
203203 20
Zoro #
G214381176
UPC #
-
Country of Origin
Germany
Dimensions
Milling Diameter
20 mm
Description
For finishing operations. Special geometry for optimum chip evacuation. Unequal spacing gives high intrinsic stability and smooth cutting action. For profile milling as a finishing operation. Note: Order the uncoated version using No. 203207. Tolerance nominal Dia. h6 No. of teeth Z: 5 Helix angle: 38 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 5 Flute length Lc: 60 mm Overhang length L1 incl. recess: 70 mm Recess Dia. D1: 19.5 mm Overall length L: 125 mm Shank Dia. Ds: 20 mm
