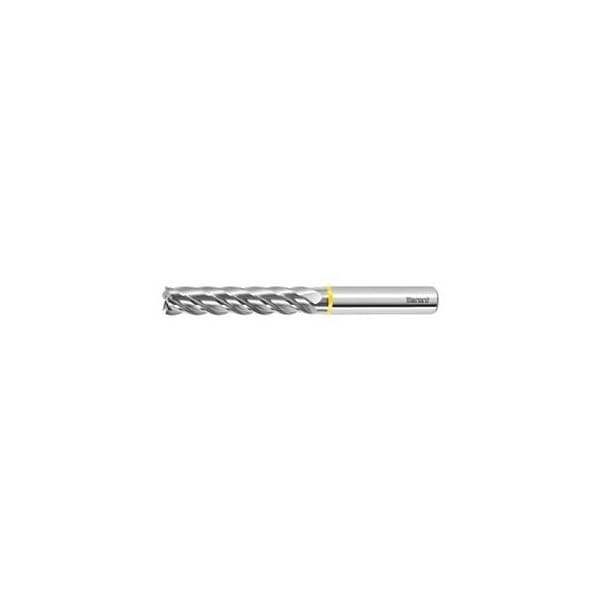

Master Alu Solid Carbide End Mill, Uncoated, 8 mm
Mfr # 203209 8
Zoro # G014380959
product price:Â
$
131.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 203209 8
- Zoro #
- G014380959
- UPC #
- -
- Country of Origin
- Germany
Description
For finishing operations. Special geometry for optimum chip evacuation. Unequal spacing gives high intrinsic stability and smooth cutting action. For profile milling as a finishing operation. Tolerance nominal Dia. h6 No. of teeth Z: 5 Helix angle: 38 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 5 Flute length Lc: 40 mm Overhang length L1 incl. recess: 48 mm Recess Dia. D1: 7.8 mm Overall length L: 80 mm Shank Dia. Ds: 8 mm
