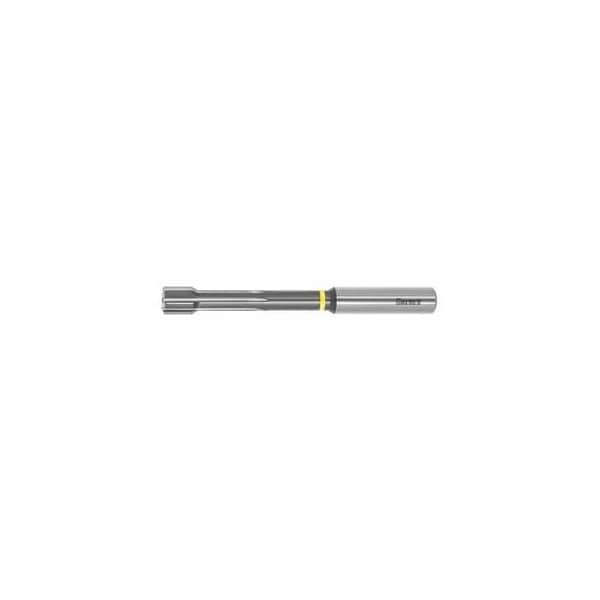

Master Alu Solid Carbide High-Performance Reamer, DLC Coated, 10 mm

IMPORTANT: item is configurable Dia. range: 9.701 10.2 mm, Interval: 0-001 Nominal Dia. DC: 10 mm Special HPC reamers of the latest generation, for machining aluminum, with improved tooth geometry and further developed carbide substrate. Extra-short teeth for increased cutting performance values. optimized cooling strategy with radially arranged coolant outlets aligned directly to the teeth. Version suitable for NC with straight shank Dia. for standard arbors especially in hydraulic chucks or high precision collet chucks. Very high concentricity and process reliability due to unequal spacing of the teeth and special profile of the round chamfer width. Version with DLC sp2 coating. Tolerance specifications: Configurable: Reamers finish ground to match your specification. H7: Version to DIN1420 for H7 bore tolerance. Application: Special version for blind holes. Tolerance: configurable Number of cutting edges Z: 6 Tolerance: configurable Dia. range: 9.701 10.2 mm Flute length Lc: 12 mm Overhang L1: 80 mm Overall length L: 120 mm Number of cutting edges Z: 6
