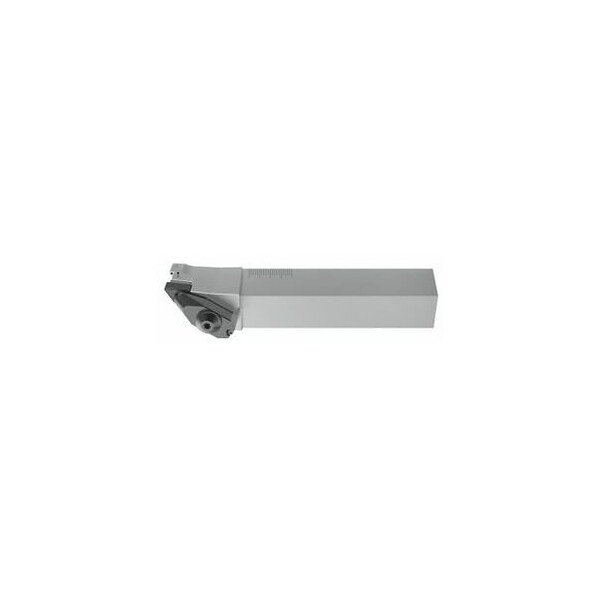

Master Eco Indexable Turning Toolholder, DDJNL2020K11, for DN 3 Inserts, Left-Hand
Mfr # 250629 20/11
Zoro # G714825224
product price:Â
$
219.99
/ea
Free Shipping & Returns
Key Features
Series
Master Eco
Size
20/11 mm
Overall Length
125 mm
Inscribed Circle (In.)
3/8 in
Head Length
35 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 250629 20/11
- Zoro #
- G714825224
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Size
- 20/11 mm
- Overall Length
- 125 mm
- Head Length
- 35 mm
- Shank Dia.
- 20 mm
- Insert Size
- 11 mm
- Functional Width
- 25 mm
Details
- Series
- Master Eco
- Inscribed Circle (In.)
- 3/8 in
- Type
- Boring bar
- Cutting Direction
- Left-Hand
- Insert Shape
- Diamond
- Setting Angle
- 93 Degrees
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: Works standard ISO code toolholder: DDJNR/L 2020K11 suitable indexable insert: DN.. 1104.. Functional width L4: 25 mm Head length L1: 35 mm Overall length L: 125 mm Shim: 269007 1
