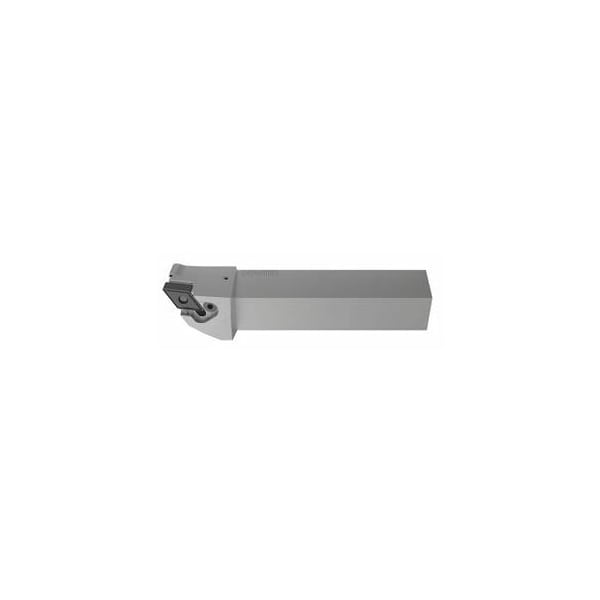

Master Eco Indexable Turning Toolholder, PDJNL2020H15, for DN 4 Inserts, Left-Hand
Mfr # 250625 20/15
Zoro # G314825228
product price:Â $213.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
20 mm
Inscribed Circle (In.)
1/2 in
Head Length
40 mm
Cutting Direction
Left-Hand
Insert Size
15 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
250625 20/15
Zoro #
G314825228
UPC #
-
Country of Origin
Italy
Dimensions
Shank Dia.
20 mm
Head Length
40 mm
Insert Size
15 mm
Size
20/15 mm
Overall Length
100 mm
Functional Width
25 mm
Details
Inscribed Circle (In.)
1/2 in
Cutting Direction
Left-Hand
Insert Shape
Diamond
Type
Boring bar
Series
Master Eco
Standards
DIN ISO 5610
Setting Angle
93 Degrees
Description
Highly efficient cooling directly on the cutter and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: DIN ISO 5610 ISO code toolholder: PDJNR/L 2020H15 suitable indexable insert: DN.. 1506.. Functional width L4: 25 mm Head length L1: 40 mm Overall length L: 100 mm Shim: 259031 45
