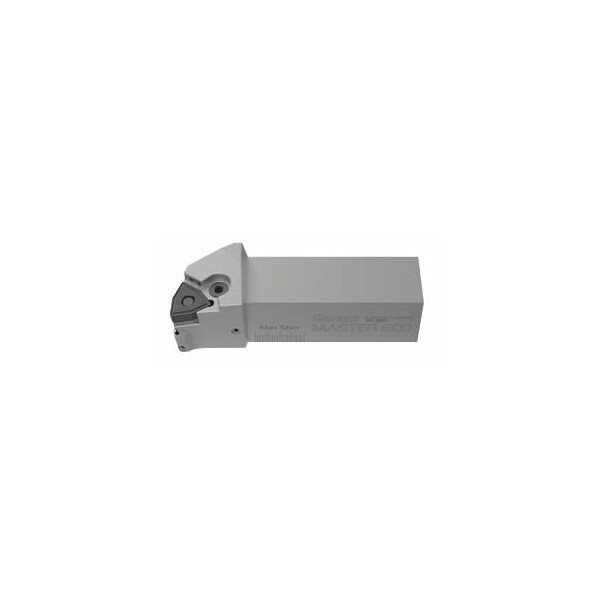

Master Eco Indexable Turning Toolholder, PWLNR2020X08, for WN 4 Inserts, Right-Hand
Mfr # 251910 20/08
Zoro # G214825182
product price:Â
$
213.99
/ea
Free Shipping & Returns
Key Features
Standards
DIN ISO 5610
Series
Master Eco
Setting Angle
95 Degrees
Head Length
30 mm
Insert Shape
Trigon
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 251910 20/08
- Zoro #
- G214825182
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Head Length
- 30 mm
- Overall Length
- 90 mm
- Insert Size
- 4
- Insert size
- 8 mm
- Functional Width
- 25 mm
- Shank Dia.
- 20 mm
- Size
- 20/08 mm
Details
- Standards
- DIN ISO 5610
- Series
- Master Eco
- Setting Angle
- 95 Degrees
- Insert Shape
- Trigon
- Type
- QuickTurn clamping toolholder
- Inscribed Circle (In.)
- 1/2 in
Description
Highly efficient cooling directly on the cutter and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: DIN ISO 5610 ISO code toolholder: PWLNR/L 2020X08 suitable indexable insert: WN.. 0804.. Functional width L4: 25 mm Head length L1: 30 mm Overall length L: 90 mm Shim: 259031 48
