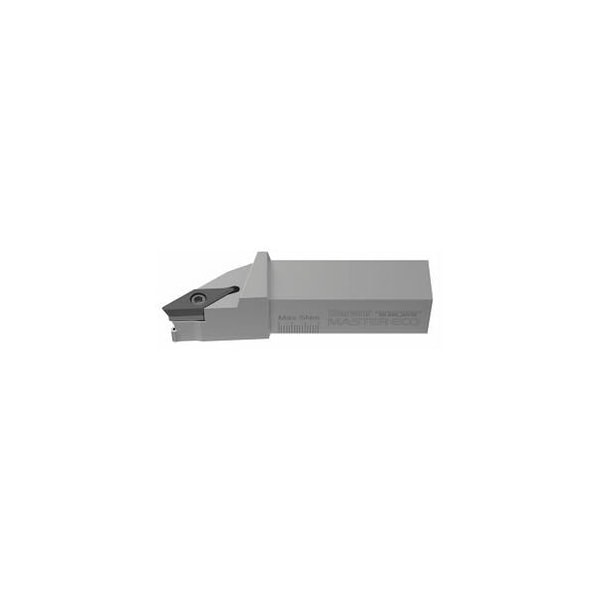

Master Eco Toolholder, SVJCR 2020H16, for VC 3 Inserts, Right-Hand
- Mfr # 261136 20/16
- Zoro # G514825332
product price:Â
$
218.99
/ea
Free Shipping & Returns
Key Features
Size
20/16
Insert Size
16 mm
Head Length
40 mm
Insert Shape
35 Degrees Diamond
Overall Length
100 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261136 20/16
- Zoro #
- G514825332
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Size
- 20/16
- Insert Size
- 16 mm
- Head Length
- 40 mm
- Overall Length
- 100 mm
- Functional Width
- 25 mm
- Shank Dia.
- 20 mm
Details
- Item
- Screw-on toolholder
- Insert Shape
- 35 Degrees Diamond
- Shim
- 259033 5
- Coolant Through
- Yes
- Series
- Master Eco
- Cutting Direction
- Right-Hand
- Shank Type
- Screw-on toolholder
- Shim screw
- 269013 7
- Setting Angle
- 93 Angle
- ISO Number
- SVJCR/L 2020H16
Description
Highly efficient cooling directly on the cutting edge and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 319136 or No. 317900 for shank length <, 125 mm. Optional connection possibility via hose connection G 1/8 inch No. 269207 and 269208. Through-coolant: yes Standard: Works standard ISO code toolholder: SVJCR/L 2020H16 suitable indexable insert: VC 1604 Functional width L4: 25 mm Head length L1: 40 mm Overall length L: 100 mm Pack of insert screws: 269023 3
