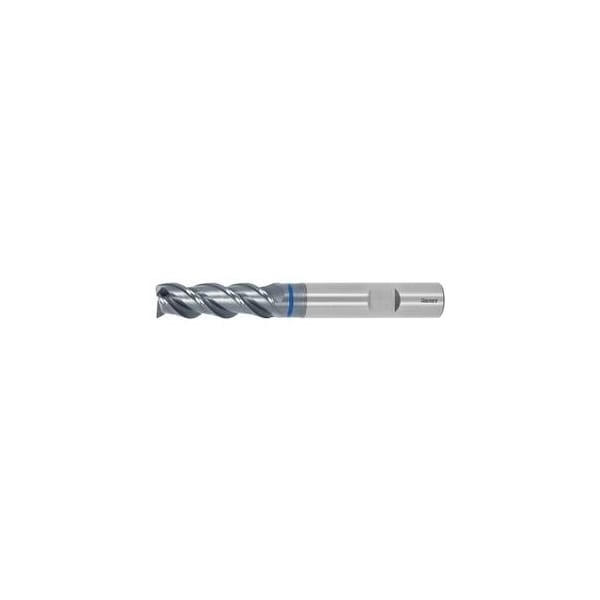

Master INOX Solid Carbide End Mill for Stainless Steels, TiAlN Coated, 2 mm
Mfr # 202389 2
Zoro # G514381920
product price:Â $53.99
/eaKey Features
Overall Length
57 mm
Milling Diameter
2 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 202389 2
- Zoro #
- G514381920
- UPC #
- -
- Country of Origin
- Austria
Dimensions
- Overall Length
- 57 mm
- Milling Diameter
- 2 mm
- Length of Cut
- 5 mm
- Neck Dia.
- 1.92 mm
- Shank Dia.
- 6 mm
- Corner Chamfer Width at 45°
- 0.05 mm
- Min. Cutting Depth
- 0.16 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 5 mm
- Tolerance Nominal Diameter
- h10
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 1 mm
Description
For roughing and finishing HPC milling cutters with newly developed high-performance coating for outstanding service life and optimum metal removal rates in a wide range of stainless steels. Greater oxidation resistance and high-temperature hardness. Can be used at high cutting speeds, particularly suitable even for TOOLOX. Tolerance nominal Dia. h10 No. of teeth Z: 3 Helix angle: 40 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 5 mm Overhang length L1 incl. recess: 15 mm Recess Dia. D1: 1.92 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
