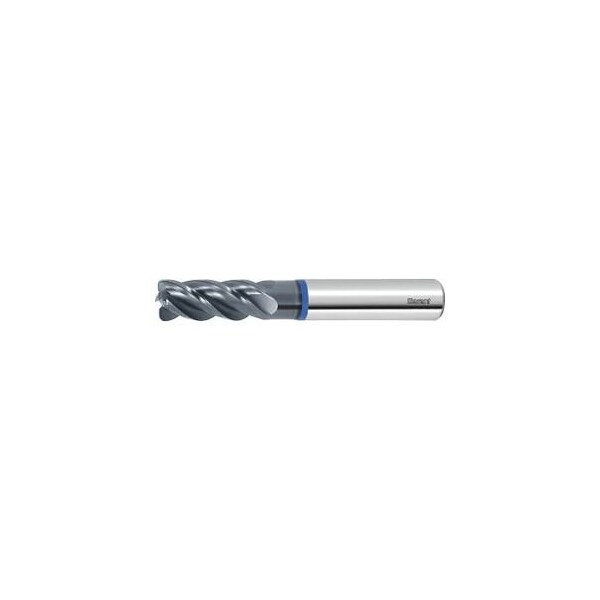

Master INOX Solid Carbide Torus End Mill, for Stainless Steels, TiAlN Coated, 8/3.0 mm
Mfr # 206345 8/3,0
Zoro # G314381663
product price: $82.65
/ea
Free Shipping & Returns
Key Features
Maximum Cutting Depth Ap Max When Side Milling
16 mm
Cutting Direction
horizontal, oblique and vertical
Coolant Through
No
Shank Dia.
8 mm
End Mill Cutting Type
HPC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206345 8/3,0
Zoro #
G314381663
UPC #
-
Country of Origin
Austria
Dimensions
Maximum Cutting Depth Ap Max When Side Milling
16 mm
Shank Dia.
8 mm
Neck Dia.
7.5 mm
Milling Diameter
8 mm
Tolerance Nominal Diameter
h10
Length of Cut
16 mm
Overall Length
63 mm
Corner Radius
3 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.4 mm
Description
Dimensions similar to DIN 6527. HPC milling cutter with newly developed high-performance coating. For outstanding tool life and optimum metal removal rate in a very wide range of stainless steels. Can be used at high cutting speeds, particularly suitable even for TOOLOX. Advantage: Greater oxidation resistance and high-temperature hardness. No. of teeth Z: 4 Helix angle: 40 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 16 mm Corner radius R1: 3 mm Overhang length L1 incl. recess: 27 mm Recess Dia. D1: 7.5 mm Overall length L: 63 mm
