Shop GARANT

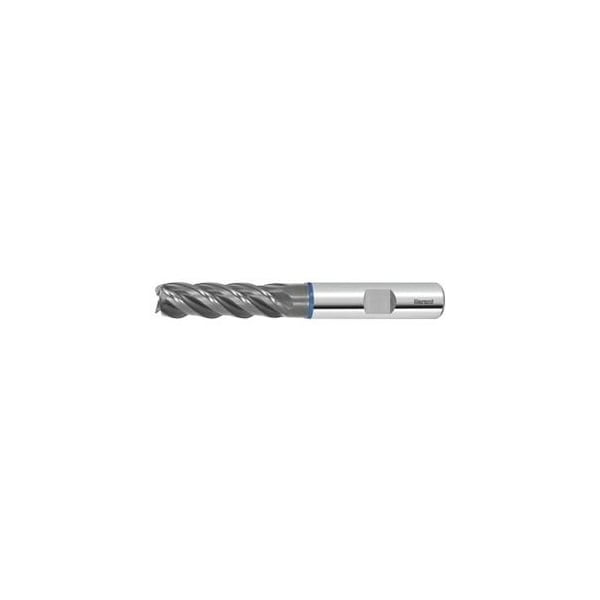

Master INOX Solid Carbide TPC End Mill, for Stainless Steels, TiAlN Coated, 5 mm

  • Mfr # 203011 5

  • Zoro # G314381922

product price:
$
60.68
/ea

Key Features

Overall Length
62 mm
Milling Diameter
5 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
203011 5
Zoro #
G314381922
UPC #
-
Country of Origin
Austria
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Color Ring
blue
Type of Product
End Mill
Corner Chamfer Angle
45 Degrees
Maximum Cut Arc Angle
32.86 Degrees
Feed Fz For Slot Milling in Stainless Steel > 900 N/mm2
0.025 mm
Correction Factor Fz
2
Feed Fz For Side Milling in inox > 900 N/mm2
0.025 mm
Type
N
Cutting Direction
horizontal, oblique and vertical
Overall Reach
25 mm
Shank Type
DIN 6535 HB to h6
Helix Angle
40 Degrees
Coolant Through
No
Series
Master INOX
End Mill Material
Carbide
Feed Fz For Side Milling in inox > 900 N/mm2
0.025 mm
Feed Fz For Slot Milling in Stainless Steel > 900 N/mm2
0.025 mm

Description

For roughing and finishing. HPC milling cutter with newly developed high-performance coating for outstanding tool life and optimum metal removal rate in a very wide range of stainless steels. Greater oxidation resistance and high-temperature hardness. Can be used at high cutting speeds, particularly suitable even for TOOLOX. Advantage: Particularly low vibration running. Tolerance nominal Dia. h10 No. of teeth Z: 4 Helix angle: 40 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 18 mm Overhang length L1 incl. recess: 25 mm Recess Dia. D1: 4.8 mm Overall length L: 62 mm Shank Dia. Ds: 6 mm
