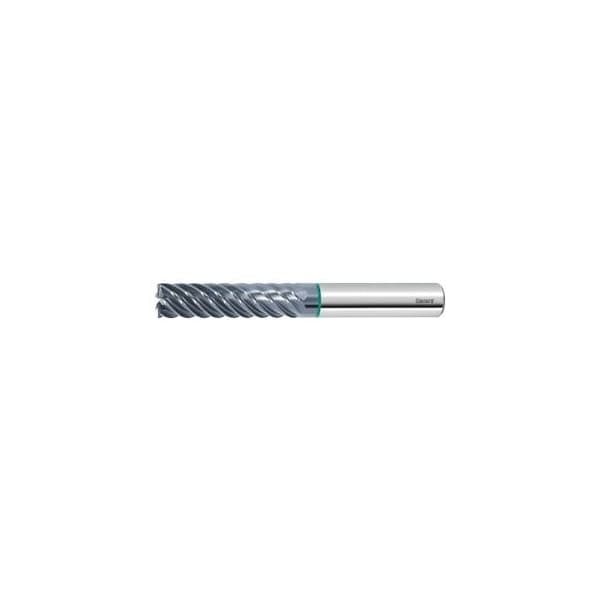

Master Steel Solid Carbide End Mill, for Finishing, TiAlN Coated, 8 mm
Mfr # 204016 8
Zoro # G514383610
product price:Â
$
119.99
/ea
Free Shipping & Returns
Key Features
Overall Length
74 mm
Milling Diameter
8 mm
Number of Flutes
7
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 204016 8
- Zoro #
- G514383610
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 7
- End Mill Style
- Chamfer
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Cutting Direction
- horizontal
- Helix Angle
- 45 Degrees
- End Mill Material
- Carbide
- Coolant Through
- No
- Series
- Master Steel
- Shank Type
- DIN 6535 HA to h6
- Type
- N
- Color Ring
- green
- Corner Chamfer Angle
- 45 Degrees
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.043 mm
- Type of Product
- End Mill
- Correction Factor Fz
- 1.25
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.043 mm
Description
Suitable for machining titanium and titanium alloys. For finishing operations. Special geometry for optimum chip evacuation. Unequal spacing gives high intrinsic stability and smooth cutting action. For profile milling as a finishing operation. Particularly long cutting edges for efficient finishing. Note: Can be reground from Dia. DC = 6 mm. ae max = 0.05xD Tolerance nominal Dia. f8 No. of teeth Z: 7 Helix angle: 45 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 7 Flute length Lc: 32 mm Overall length L: 74 mm Shank Dia. Ds: 8 mm Corner chamfer width at 45 Deg: 0.08 mm Feed fz for side milling in steel < 900 N/mm2: 0.043 mm
