Shop CHICAGO-LATROBE

60PC 118 Deg General Purpose Screw Machine Length Drill Set Chicago-Latrobe 157 Bright HSS, N1-No 60

  • Mfr # 69902
  • Zoro # G3592023
product price:
$
145.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
60
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
69902
Zoro #
G3592023
UPC #
662355699027
Country of Origin
United States
Item
Screw Machine Drill Bit Set
Number of Pieces
60
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
List Number
157
Point Type
General Purpose
Number of Flutes
2
Standards
Not Rated
Flute Type
Spiral
Coolant Fed
Non-Coolant Through
Material - Machining
High Speed Steel
Number of Drill Bits
60
Primary Material Application
All Materials
Measurement System
Wire
Finish - Machining
Bright (Uncoated)
Drill Bit Point Type
Conventional Point
Material Grade - Machining
General Purpose
Drill Bit Case Type
Metal Index
Shank Type - Machining
Straight
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

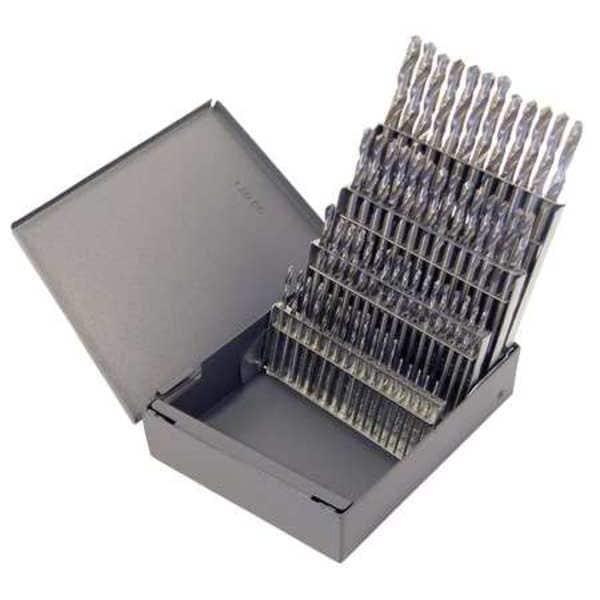

The CHICAGO-LATROBE 69902 Screw Machine Drill Bit Set includes 60 pieces ranging from size #60 to #1, with a conventional 118-degree point angle and screw-machine length. The set is housed in a metal index for organized storage and easy access, and the bits feature straight shanks and two-flute spiral geometry. Non-Coolant Through design (requires external coolant application).

Key Features:

  • Number of drill bits: 60 with sizes from #60 (smallest) to #1 (largest)
  • Material: High Speed Steel, general purpose grade
  • Point type: Conventional (118° angle), suited for general applications
  • Shank type: Straight for compatibility with a wide range of chucks
  • Flute type: Spiral, with helix angles between 21° and 34°
  • Drill length class: Screw-Machine Length
  • Finish: Bright (uncoated)
  • Cutting direction: Right hand
  • Drill bit dimension type: Wire (measurement system)
  • Includes metal drill index case for drill organization and storage
  • Coolant feed: Non-Coolant Through design (requires external coolant application)
