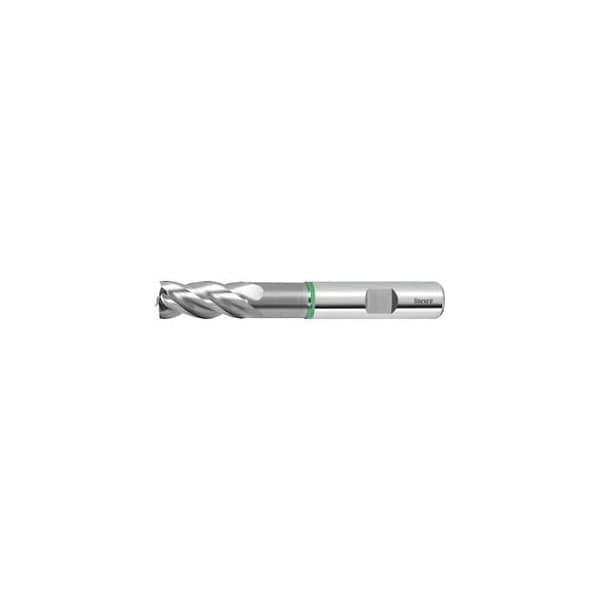

Master Steel Solid Carbide End Mill, TiAlN Coated, 14 mm
Mfr # 203036 14
Zoro # G714382437
product price: $176.99
/ea
Free Shipping & Returns
Key Features
Neck Dia.
13.6 mm
Min. Cutting Depth
0.28 mm
Shank Tolerance
h6
Overall Reach
52 mm
Corner Chamfer Angle
45 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
203036 14
Zoro #
G714382437
UPC #
-
Country of Origin
Germany
Dimensions
Neck Dia.
13.6 mm
Min. Cutting Depth
0.28 mm
Tolerance Nominal Diameter
f8
Corner Chamfer Width at 45°
0.28 mm
Overall Length
99 mm
Milling Diameter
14 mm
Shank Dia.
14 mm
Length of Cut
26 mm
Maximum Cutting Depth Ap Max When Side Milling
26 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
9.8 mm
Description
For roughing and finishing up to 0.7xD into solid material at very high feed rates with smooth cutting action. Advantage: optimized flute form, eccentric relief ground, wide chip space. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 26 mm Overhang length L1 incl. recess: 52 mm Recess Dia. D1: 13.6 mm Overall length L: 99 mm Shank Dia. Ds: 14 mm
