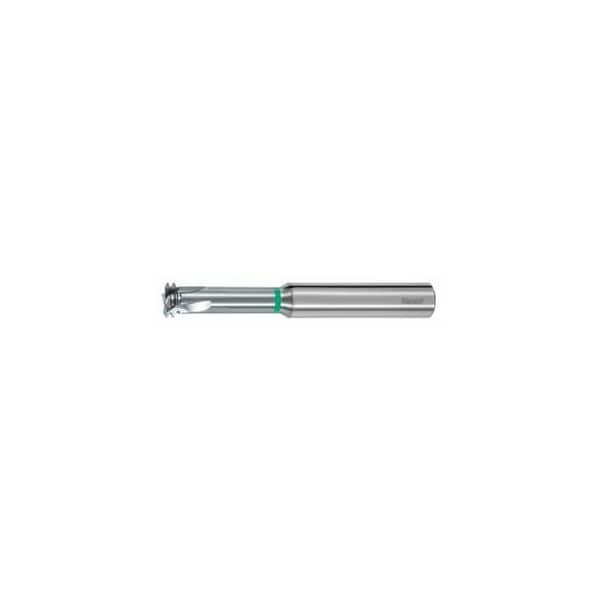

Master TM Solid Carbide End Cutting Thread Mill, M8-1.25 Thread Size, AlCrN Coated
Mfr # 139526 M8
Zoro # G414390817
product price:Â
$
239.99
/ea
Free Shipping & Returns
Key Features
Overall Length
62
Shank Dia.
8 mm
Number of Flutes
4
Finish - Machining
AlCrN
Material - Machining
Solid carbide
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 139526 M8
- Zoro #
- G414390817
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 62
- Shank Dia.
- 8 mm
- Thread Size
- M8
- Shank Length
- 36
- Neck Dia.
- 4.7 in
- Thread Depth
- 20
Details
- Item
- Drill thread milling cutters
- Number of Flutes
- 4
- Finish - Machining
- AlCrN
- Material - Machining
- Solid carbide
- Cutting Direction
- Left-Hand
- Thread standard
- DIN 13
Description
Significantly reduced vibrations due to irregular cutting edge spacing. New coating for optimum wear resistance. Cooling grooves on the shank for targeted coolant feed. Corrected thread profile for avoidance of profile distortions. The special front cutter geometry with unequal spacing permits process-reliable circular thread milling across a wide spectrum of materials. The side cooling grooves on the shank ensure outstanding coolant feed without weakening the tool core and thus offer maximum process reliability even in unstable conditions. All tools have left-hand cutting and are suitable for right-hand and left-hand threads. Through-coolant: yes Thread pitch: 1.25 mm Cutting edge Dia. DC: 6.4 mm Cutter length lc: 2.5 mm Overhang L1: 21.25 mm Shank length Ls: 36 mm Overall length L: 62 mm
