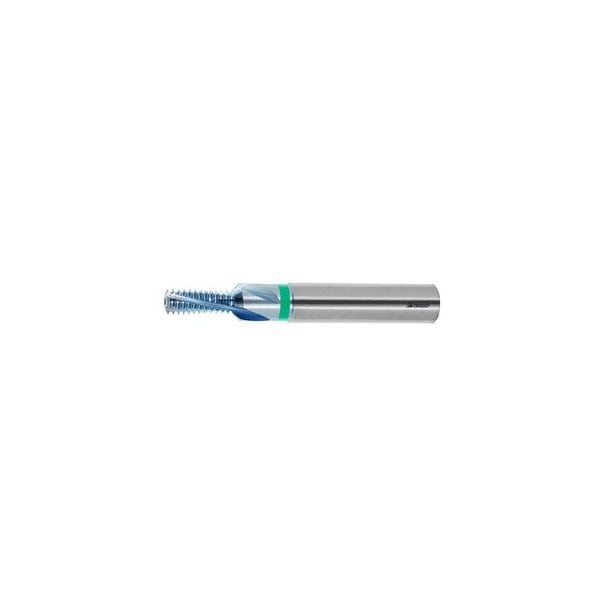

Master TM UNC Thread Mill with Countersink, 10-24 Thread Size, TiAlN Coated
Mfr # 139723 10-24
Zoro # G409578633
product price:Â
$
367.99
/ea
Free Shipping & Returns
Key Features
Overall Length
58 mm
Shank Dia.
6 mm
Finish - Machining
TiAlN
Neck Dia.
5.5 mm
Shank
DIN 6535 HA with h6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 139723 10-24
- Zoro #
- G409578633
- UPC #
- 4062406058197
- Country of Origin
- Germany
- Item
- thread milling cutter
- Finish - Machining
- TiAlN
- Shank
- DIN 6535 HA with h6
- Material
- solid carbide
- Rake Angle
- 90 °
- Pitch
- 1.058 mm
- Coolant Through
- Yes
- Cutting direction
- right-hand
- Thread type
- UNC-LH
- Feed in Steel
- 0.03 mm
- For Hole Type
- Blind Holes and Through Holes
- Cutter Spacing
- Unequal
- Number Of Clamping Slots
- 4
- Series
- Master TM
- Flank Angle
- 60 Degrees
- Internal/External
- Internal
- Number of Teeth
- 4
- Threads per Inch
- 24
Description
Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth running and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. - Significantly reduced vibration due to irregular cutting edge spacing. - Increased number of cutting edges. - New coating for optimum wear resistance. - Corrected thread profile for avoidance of profile distortions. Advantage: Incorporating a countersink profile for a 90Deg countersink and thread milling in a single operation. Application: For UNC unified coarse threads ASME-B1.1. Note: Form HB and HE supplied at the same price as HA. Form HB: order with No. 139723 + 129100 HB Form HE: order with No. 139723 + 129100 HE Thread type: UNC Thread type: UNC-LH No. of teeth Z: 4 Threads per inch: 24 Nominal dia DC: 3.55 mm Flute length Lc: 10.02 mm Shank length Ls: 36 mm Overall length L: 58 mm Shank dia Ds: 6 mm
