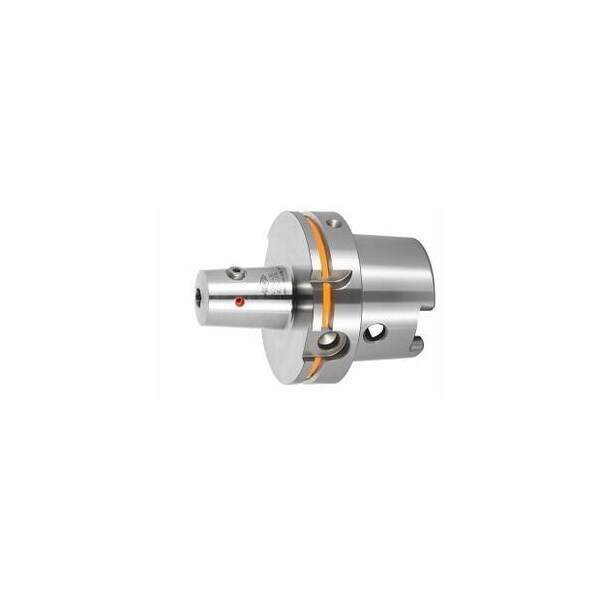

Milling Chuck with Cooling Channel Bores, HSK-A 100 Short, Clamping Diameter D1: 20mm
- Mfr # 304460 20
- Zoro # G814776792
product price:Â
$
624.99
/ea
Free Shipping & Returns
Key Features
Dia. (In.)
1.8307
Taper
HSK100A
Coolant Through
Yes
Projection
100 mm
Shape
A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 304460 20
- Zoro #
- G814776792
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Dia. (In.)
- 1.8307
- Outside Dia.
- 53.5 mm
- Clamping Dia.
- 20 mm
Details
- Item
- Side lock arbor
- Taper
- HSK100A
- Coolant Through
- Yes
- Projection
- 100 mm
- Shape
- A
- Concentricity
- ≤ 3 µm
- Balance Quality
- G 2.5 at 25,000 rpm
Description
With RFID/Balluffchip bore. All shanks hard turned. Supplied with 4 table cooling channel bores. Advantage: No risk of the cutter being pulled out, not even a tug. optimized external contour vibration-damping behaviour. Pleasant handling thanks to the differential thread. Breakage of the milling cutter shank is improbable. Precision version. Application: For clamping tools with side drive flats to DIN 1835 Form B and DIN 6535 Form HB. Best suited for TPC milling or high feed rate applications. No risk of the cutter being pulled out, more precise radial run-out, process reliability! Optional extras: Coolant pipe No. 309880, coolant pipe wrench No. 309890 Overhang dimension A: 100 mm External Dia D: 53.5 mm Dia D2: 46.5 mm
