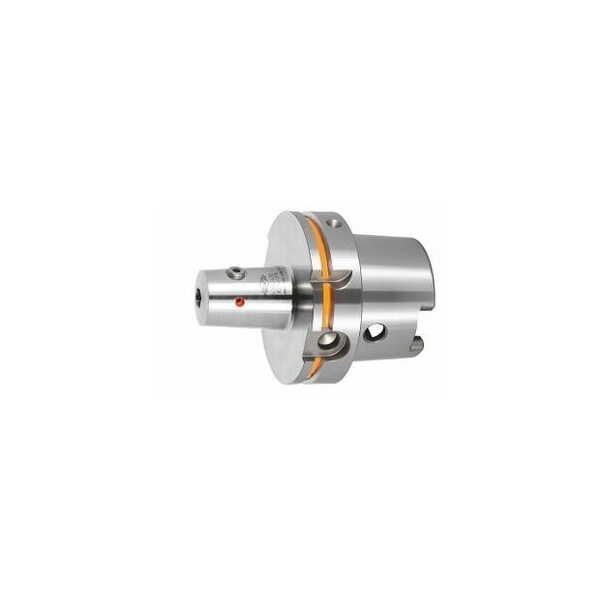

Milling Chuck with Cooling Channel Bores, HSK-A 100 Short, Clamping Diameter D1: 6mm
Mfr # 304460 6
Zoro # G014776806
product price: $617.99
/ea
Free Shipping & Returns
Key Features
Dia. (In.)
22.5 mm
Coolant Through
Yes
Shape
A
Balance Quality
G 2.5 at 25,000 rpm
Taper
HSK100A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
304460 6
Zoro #
G014776806
UPC #
-
Country of Origin
Germany
Dimensions
Dia. (In.)
22.5 mm
Outside Dia.
27.5 mm
Clamping Dia.
6 mm
Details
Item
Side lock arbor
Coolant Through
Yes
Shape
A
Balance Quality
G 2.5 at 25,000 rpm
Taper
HSK100A
Concentricity
≤ 3 µm
Projection
80 mm
Description
With RFID/Balluffchip bore. All shanks hard turned. Supplied with 4 table cooling channel bores. Advantage: No risk of the cutter being pulled out, not even a tug. optimized external contour vibration-damping behaviour. Pleasant handling thanks to the differential thread. Breakage of the milling cutter shank is improbable. Precision version. Application: For clamping tools with side drive flats to DIN 1835 Form B and DIN 6535 Form HB. Best suited for TPC milling or high feed rate applications. No risk of the cutter being pulled out, more precise radial run-out, process reliability! Optional extras: Coolant pipe No. 309880, coolant pipe wrench No. 309890 Overhang dimension A: 80 mm External Dia D: 27.5 mm Dia D2: 22.5 mm
