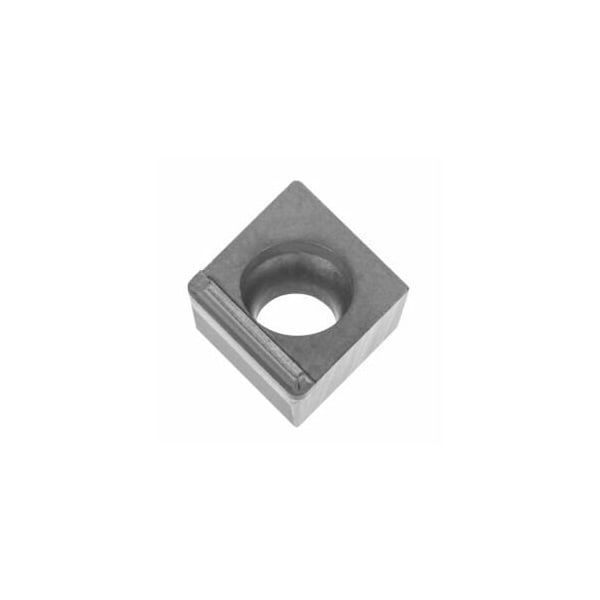

PCD Turning Insert, Diamond, CCGT09T308FL
Mfr # 265824 TWN
Zoro # G314822531
product price:Â $198.99
/ea
Free Shipping & Returns
Key Features
Insert Shape
80 Degrees Diamond
Insert Style
CCGT
Inscribed Circle
3
Grade
PCD
Corner Radius
0.8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
265824 TWN
Zoro #
G314822531
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
0.8 mm
Max. Cutting Depth (ap max)
7.5 mm
Insert Thickness
2.5 mm
Cutting Depth
0.5 mm
Min. Cutting Depth (ap min)
0.5 mm
Details
Item
Indexable Insert for Turning
Insert Shape
80 Degrees Diamond
Insert Style
CCGT
Inscribed Circle
3
Grade
PCD
Insert Material
PCD
Insert Application
Roughing
Rake
6 deg
ISO Number
CCGT 09T308 FL
No. of Edges
1
Cutting Edge Version
TWN
Cutting Conditions
Continuous
Description
PCD Polycrystalline diamond, fine grain. Roughing, stable cutting edge for large cutting depths. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 6 degrees Grade: PCD Cutting edge TWN Cutting depth ap: 0.5 7.5 mm Feed f: 0.05 0.5 mm/rev. Cutting speed vc for alu < 10 % Si: 400 3500 m/min Cutting speed vc for non-ferrous metals: 300 2200 m/min
