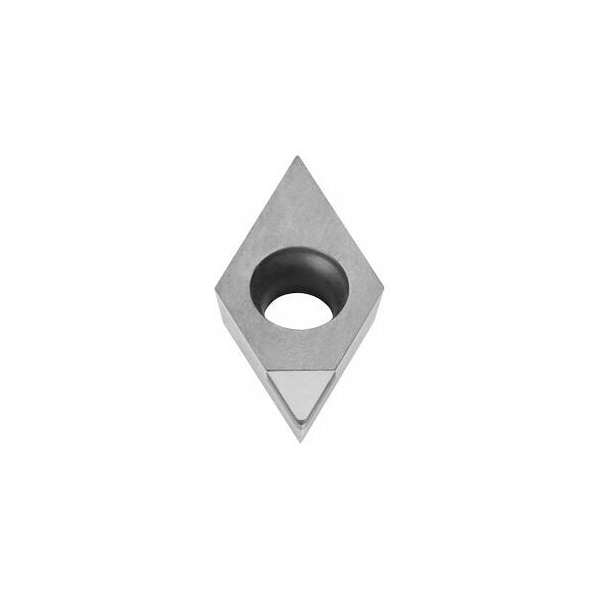

PCD Turning Insert, Diamond, DCGW11T304FN
Mfr # 265850 N
Zoro # G614821777
product price: $74.99
/eaKey Features
Cutting Edge Version
Aluminum
Inscribed Circle
3
Insert Application
Roughing-Finishing
No. of Edges
1
Max. Cutting Depth (ap max)
2.5 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
265850 N
Zoro #
G614821777
UPC #
-
Country of Origin
Germany
Dimensions
Max. Cutting Depth (ap max)
2.5 mm
Cutting Depth
0.1 mm
Min. Cutting Depth (ap min)
0.1 mm
Corner Radius
0.4 mm
Insert Thickness
2.5 mm
Details
Cutting Edge Version
Aluminum
Item
Indexable Insert for Turning
Inscribed Circle
3
Insert Application
Roughing-Finishing
No. of Edges
1
Insert Material
PCD
Cutting Conditions
Continuous
Grade
PCD
Insert Style
DCGW
Rake
0°
ISO Number
DCGW 11T304 FN
Insert Shape
55 Degrees Diamond
Description
PCD Polycrystalline diamond, fine grain. Neutral, without chip breaker. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 0 degrees Grade: PCD Cutting edge N Cutting depth ap: 0.1 2.5 mm Feed f: 0.03 0.4 mm/rev. Cutting speed vc for alu < 10 % Si: 300 2000 m/min Cutting speed vc for non-ferrous metals: 300 1500 m/min
