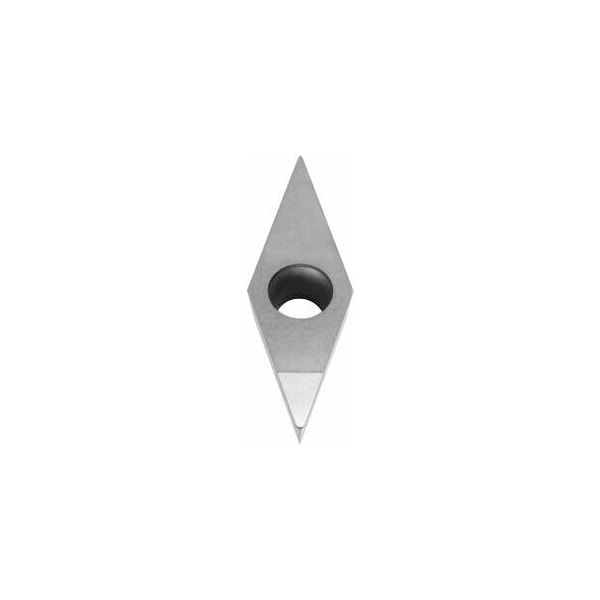

PCD Turning Insert, Diamond, VCGW050101FN
Mfr # 265870 N
Zoro # G314821749
product price:Â
$
205.99
/ea
Free Shipping & Returns
Key Features
Insert Shape
35 Degrees Diamond
Insert Style
VCGW
Inscribed Circle
5 mm
Insert Size
50101
Grade
PCD
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 265870 N
- Zoro #
- G314821749
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Insert Size
- 50101
- Corner Radius
- 0.1 mm
- Insert Thickness
- 1 mm
- Min. Cutting Depth (ap min)
- 1 mm
- Max. Cutting Depth (ap max)
- 2.5 mm
- Cutting Depth
- 0.1 mm
Details
- Item
- Indexable Insert for Turning
- Insert Shape
- 35 Degrees Diamond
- Insert Style
- VCGW
- Inscribed Circle
- 5 mm
- Grade
- PCD
- Insert Material
- PCD
- Insert Application
- Semi-roughing
- Rake
- 0°
- ISO Number
- VCGW 050101 FN
- Cutting Conditions
- Continuous
- Cutting Edge Version
- Aluminum
- No. of Edges
- 1
Description
PCD Polycrystalline diamond, fine grain. Neutral, without chip breaker. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 0 degrees Grade: PCD Cutting edge N Cutting depth ap: 0.1 2.5 mm Feed f: 0.03 0.4 mm/rev. Cutting speed vc for alu < 10 % Si: 300 2000 m/min Cutting speed vc for non-ferrous metals: 300 1500 m/min
