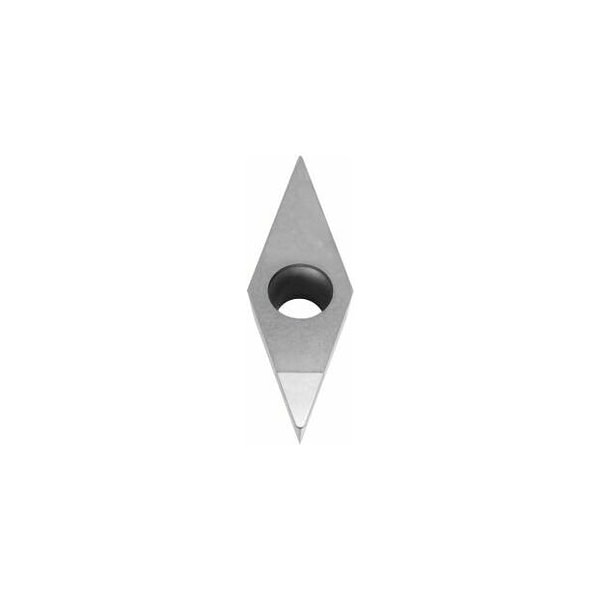

PCD Turning Insert, Diamond, VCGW160404FN
Mfr # 265895 N
Zoro # G314821596
product price: $99.19
/ea
Free Shipping & Returns
Key Features
Rake
0°
Cutting Depth
0.1 mm
Insert Application
Semi-roughing
Cutting Conditions
Continuous
Insert Shape
35 Degrees Diamond
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
265895 N
Zoro #
G314821596
UPC #
-
Country of Origin
Germany
Dimensions
Cutting Depth
0.1 mm
Min. Cutting Depth (ap min)
0.1 mm
Max. Cutting Depth (ap max)
2.5 mm
Corner Radius
0.4 mm
Insert Thickness
3 mm
Insert Size
331
Details
Rake
0°
Insert Application
Semi-roughing
Cutting Conditions
Continuous
Insert Shape
35 Degrees Diamond
Cutting Edge Version
Aluminum
Item
Indexable Insert for Turning
Grade
PCD
No. of Edges
1
Inscribed Circle
3
Insert Material
PCD
Insert Style
VCGW
ISO Number
VCGW 160404 FN
Description
PCD Polycrystalline diamond, fine grain. Neutral, without chip breaker. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 0 degrees Grade: PCD Cutting edge N Cutting depth ap: 0.1 2.5 mm Feed f: 0.03 0.4 mm/rev. Cutting speed vc for alu < 10 % Si: 300 2000 m/min Cutting speed vc for non-ferrous metals: 300 1500 m/min
